16 Channel Relay Module
$23.00
5V 16-Channel Relay Module with Optocoupler Isolation (High/Low Level Trigger)

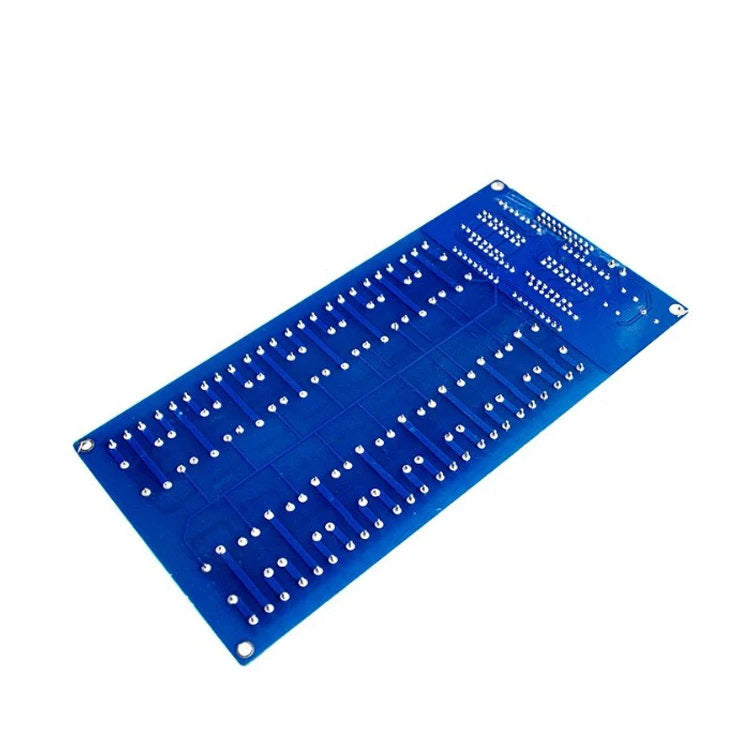

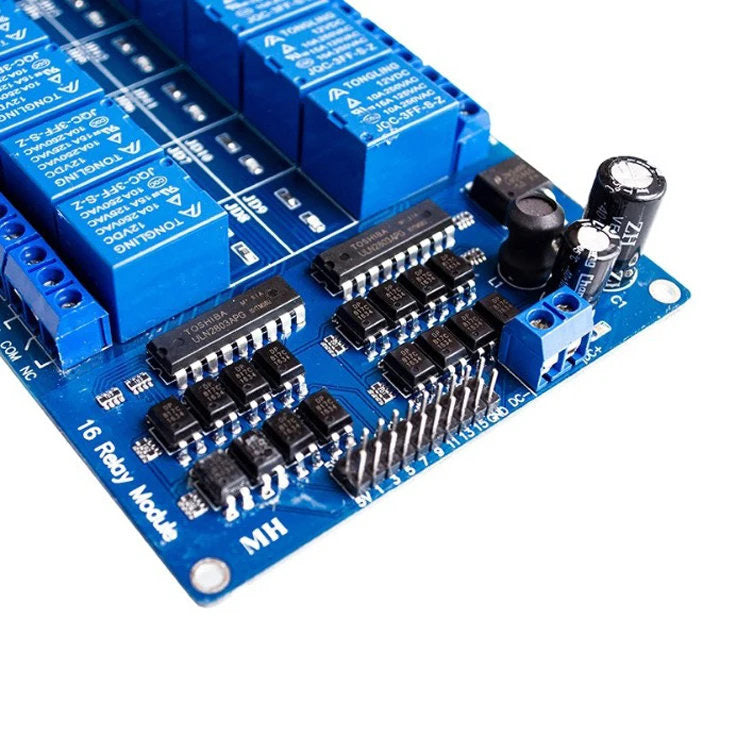

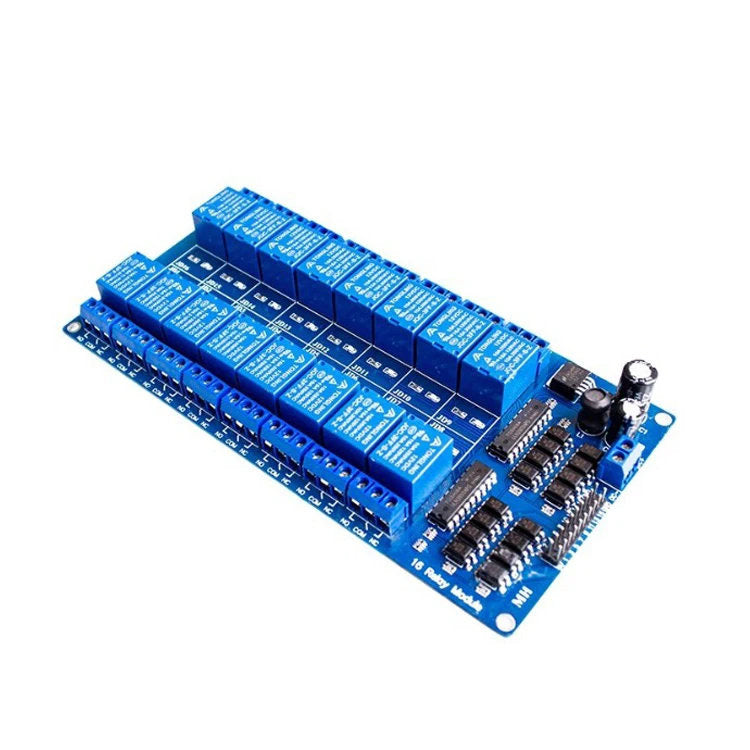

This 5V 16-channel relay module uses SMD optocoupler isolation to provide stable performance and reliable driving capability. Each relay channel supports selectable high or low level triggering via jumper configuration, allowing flexible control options. A fault-tolerant design ensures the relays will not operate if a control signal line is disconnected.
Key Features
-
16 independent relay channels with selectable high or low level trigger per channel
-
SMD optocoupler isolation for stable performance and strong driving capability
-
Trigger current: 5mA
-
Fault-tolerant design prevents relay operation if the control line is broken
-
LED indicators:
-
Green power indicator
-
Red relay status indicators for all 16 channels
-
-
User-friendly terminal interfaces for direct wiring connections
Relay Specifications
| Parameter | Specification |
|---|---|
| Relay type | Normally open / normally closed |
| Maximum load (AC) | 250V / 10A |
| Maximum load (DC) | 30V / 10A |
| Operating voltage | 5V |
Module Specifications
| Item | Details |
|---|---|
| Mounting design | Four mounting bolt holes |
Interface Description
Power Input
-
DC+: 5V positive power supply
-
DC−: Negative power connection
Control Inputs
-
IN1–IN16: Control inputs for each relay channel, configurable as high or low trigger via jumper
Relay Outputs
-
NO1–NO16: Normally Open contacts
-
COM1–COM16: Common contacts
-
NC1–NC16: Normally Closed contacts
High / Low Trigger Selection
-
S1–S16 jumpers correspond to relay channels 1–16
-
Short COM to LOW: Low-level trigger
-
Short COM to HIGH: High-level trigger
Package Includes
-
1 × 5V 16-Channel Relay Module with Optocoupler Isolation
