Brushless Motor Speed Controller
$8.00
Brushless Electronic Speed Controller (ESC)
Key Features
-
Manufactured with high-quality PCB materials for reliable operation
-
Stable performance with long service life
-
Shipped in protective anti-static packaging
-
Supports large current output with 30A and 40A options
-
Built-in overheating and loss-of-signal protection
-
Simple operation, ideal for DIY enthusiasts
Electrical Performance
-
Continuous current: 30A
-
Instant current: 35A
-
Short-term current: 40A for 10 seconds
-
Voltage range: 6V–16V
-
PWM frequency: 8KHz
-
Speed control curve for smooth throttle response
Battery Compatibility
-
NiMH: 4–12 cells
-
LiPo: 2–3 cells
-
4S LiPo supported, but BEC output must not be used
BEC Output
-
Continuous output: 2A
-
Instant output: 3A
-
2S LiPo: supports 4–5 micro steering gears
-
3S LiPo: supports 3–4 micro steering gears
Protective Functions
-
Automatic battery type detection (2–3S LiPo or NiMH)
-
LiPo protection voltages: 6V / 9V
-
NiMH protection voltage: 0.8V per cell
-
Safe start protection
-
Over-temperature protection: stops at 110 °C surface temperature
-
Loss-of-signal protection: motor stops after 1 second
Motor Speed Capability
-
2-pole motor: up to 300,000 RPM
-
12-pole motor: up to 50,000 RPM
-
14-pole motor: up to 42,000 RPM
Power Design
-
BEC and MCU powered separately for improved stability
-
Automatic throttle adaptation for compatibility with various remote control systems
Brake Function
-
No factory brake setting
-
Brake can be enabled or disabled through user operation during setup
Parameter Reset
-
Supports parameter reset to restore performance
-
Useful if throttle response or acceleration changes due to protection activation
Setup and Operation Overview
-
Throttle calibration required before use
-
Audible prompts guide battery type selection and protection settings
-
ESC automatically confirms selections via motor sound signals
-
Brushless motor phase wires can be connected in any order; swap any two wires to reverse rotation

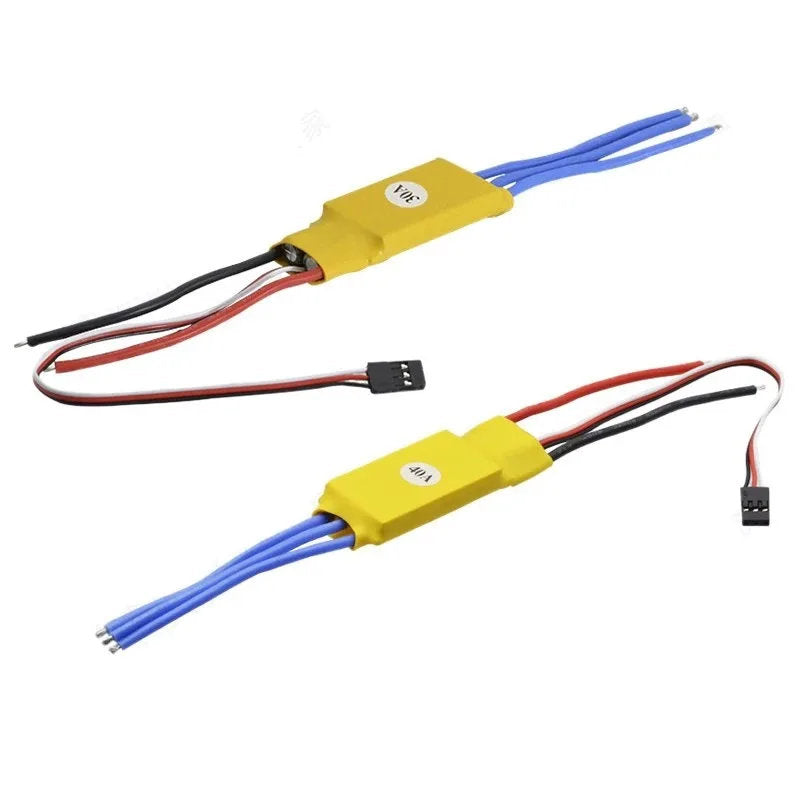

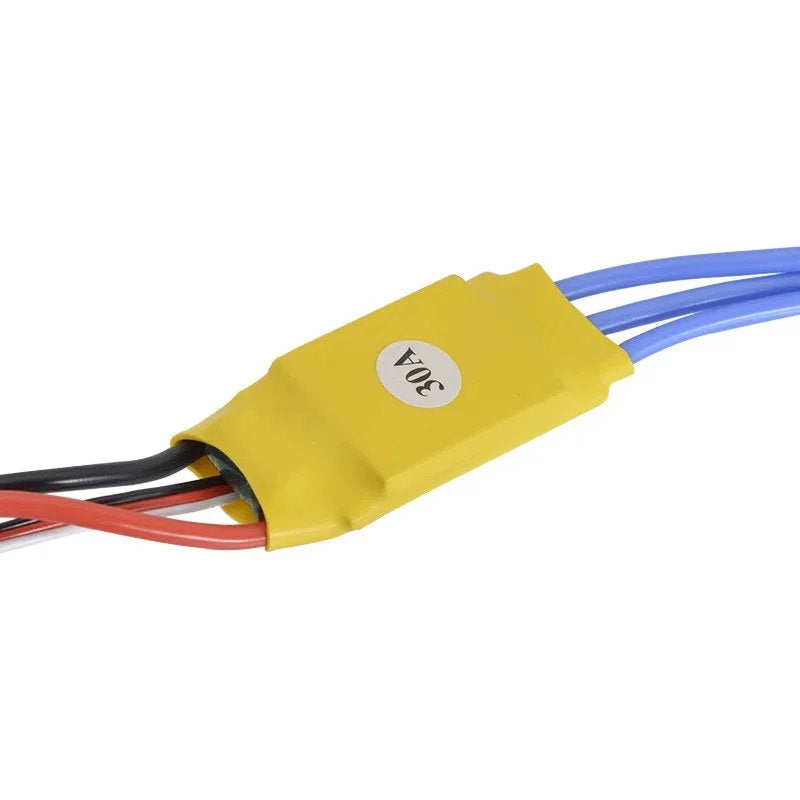

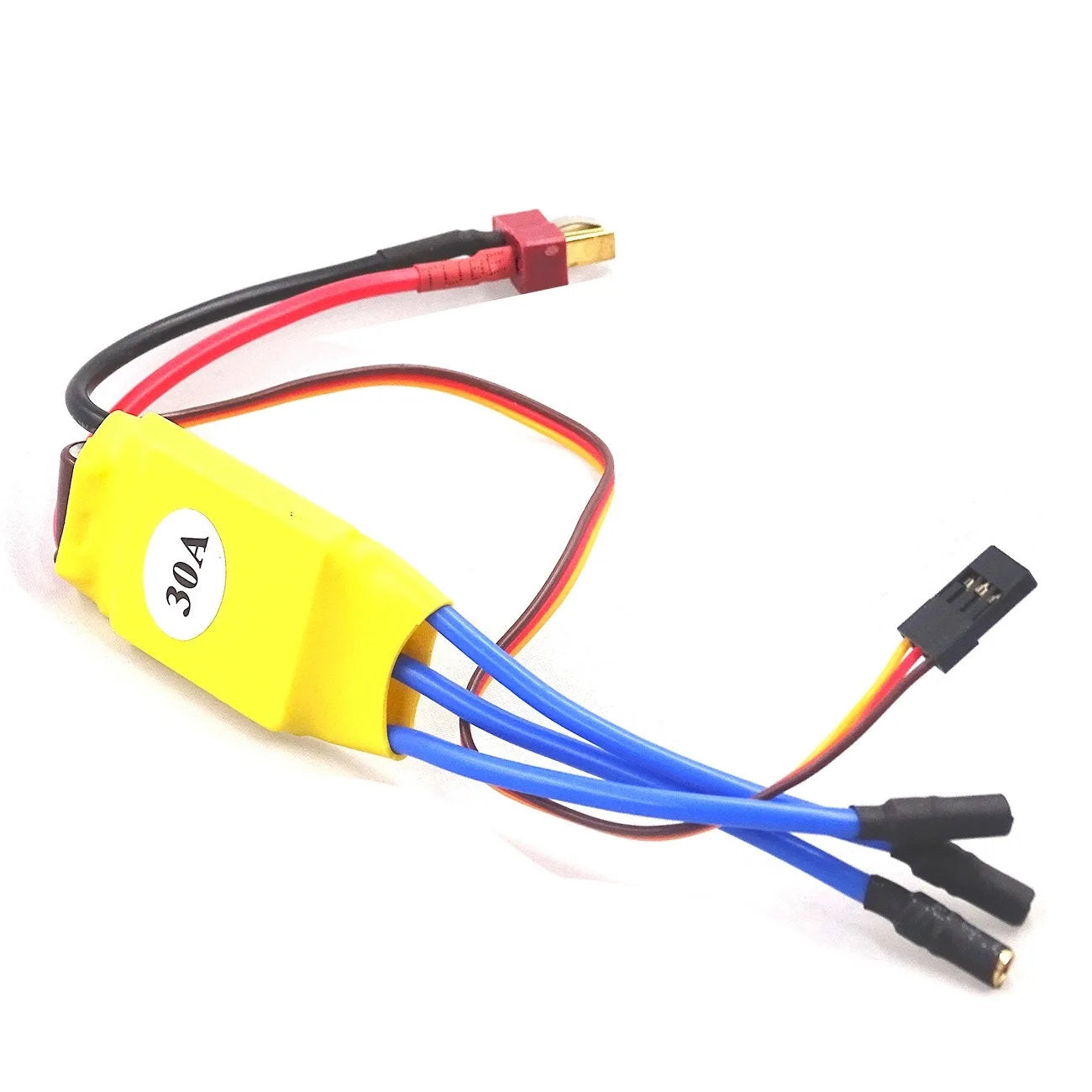

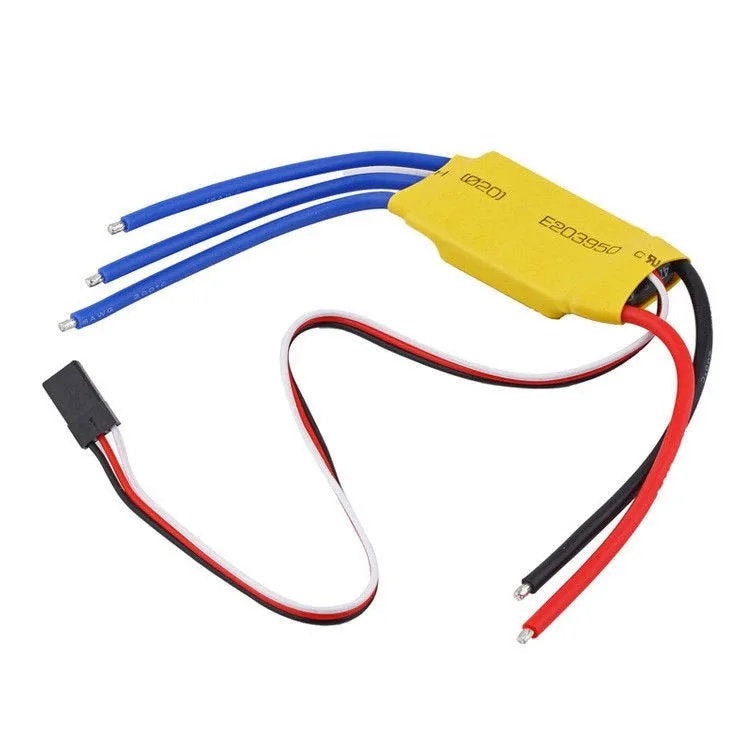

Product Appearance
-
Color: Yellow
This ESC combines stable power delivery, comprehensive protection features, and flexible configuration, making it suitable for a wide range of brushless motor applications and DIY projects.
