DeepCool AN600 Low-Profile CPU Cooler, 1x 120mm PWM Fans, Aluminium Fins, Copper Base, 6x Heatpipes, Intel/AMD
$68.00

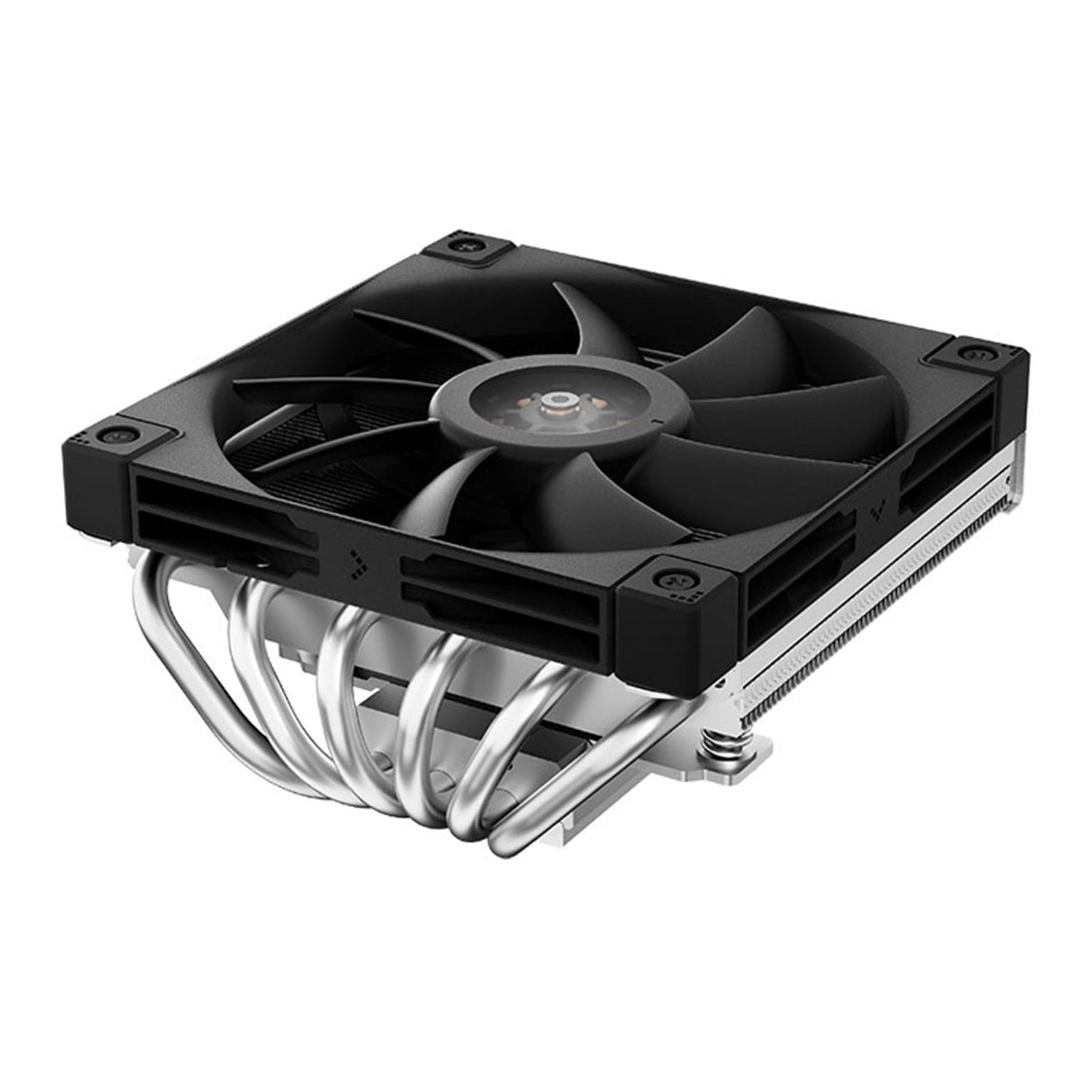

AN600 Top-Flow Low-Profile CPU Cooler
The AN600 is a low-profile CPU cooler designed to deliver up to 180W of cooling performance while also directing airflow over nearby components such as RAM modules. With its overhanging, top-flow design and slim 120 mm high-airflow fan, the AN600 actively cools RAM modules up to 40 mm tall and is compatible with ITX motherboards.
Key Features
-

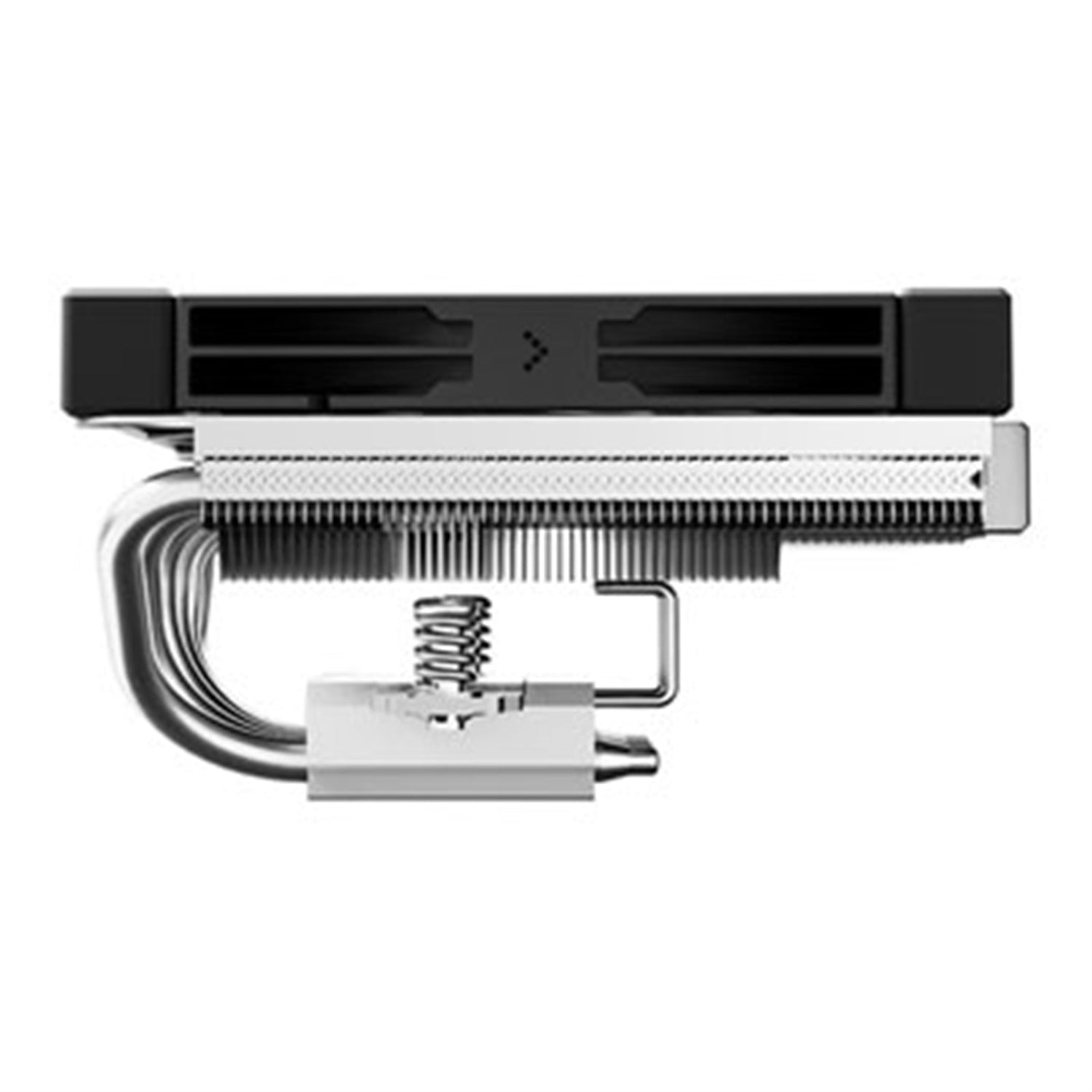

Low-Profile Design (67 mm Height)
Compact form factor ideal for space-constrained builds where clearance is limited. -
Efficient 180W CPU Cooling

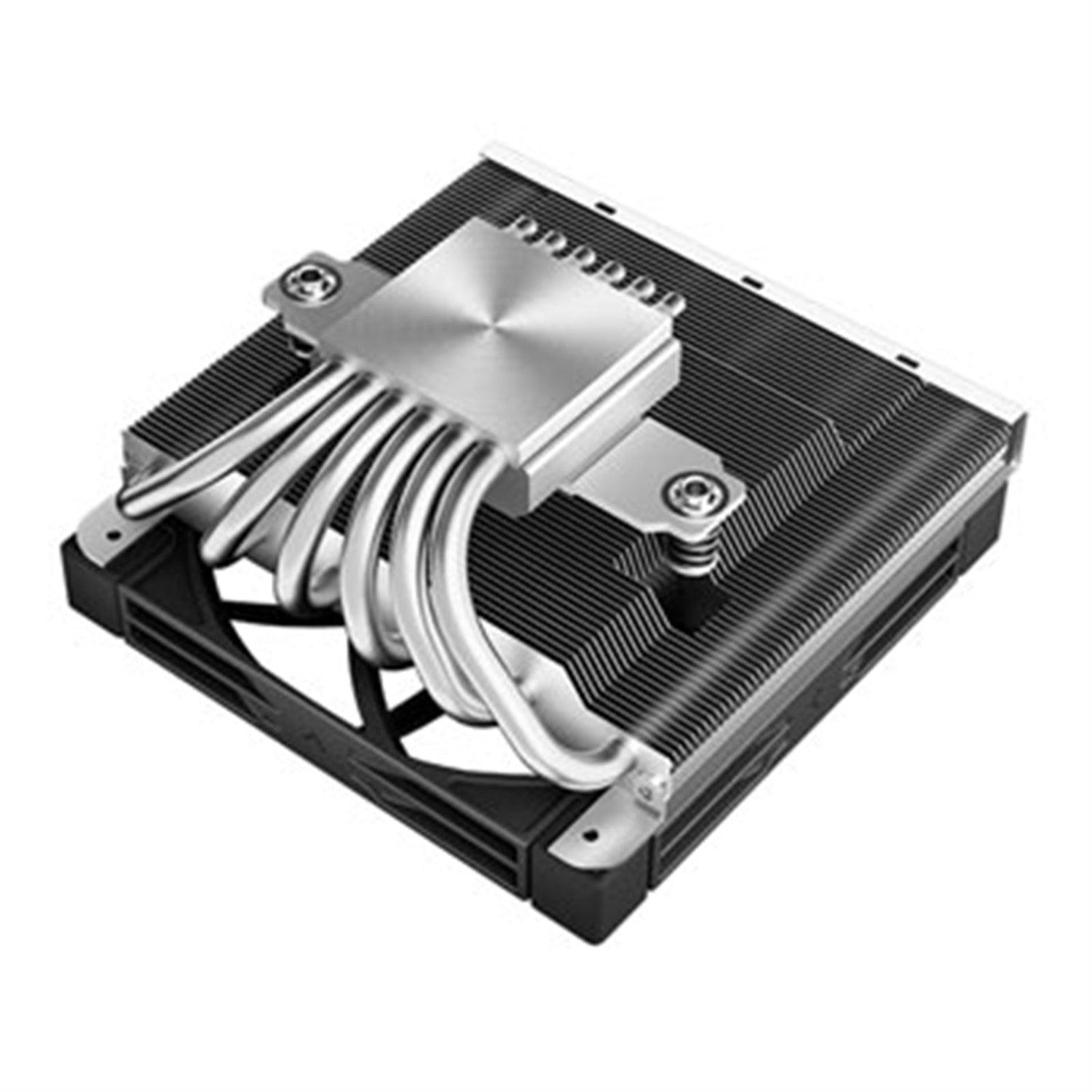

Combines 62 aluminum fins, 6 optimized heatpipes, and a raised copper coldplate to provide strong cooling performance in a short cooler. -
Top-Down Airflow for Component Cooling
The overhanging design and top-flow layout push air not only through the fin stack but also downward onto RAM and VRM components. -
RAM Cooling up to 40 mm Height
Actively cools RAM modules up to 40 mm tall for enhanced system thermals. -

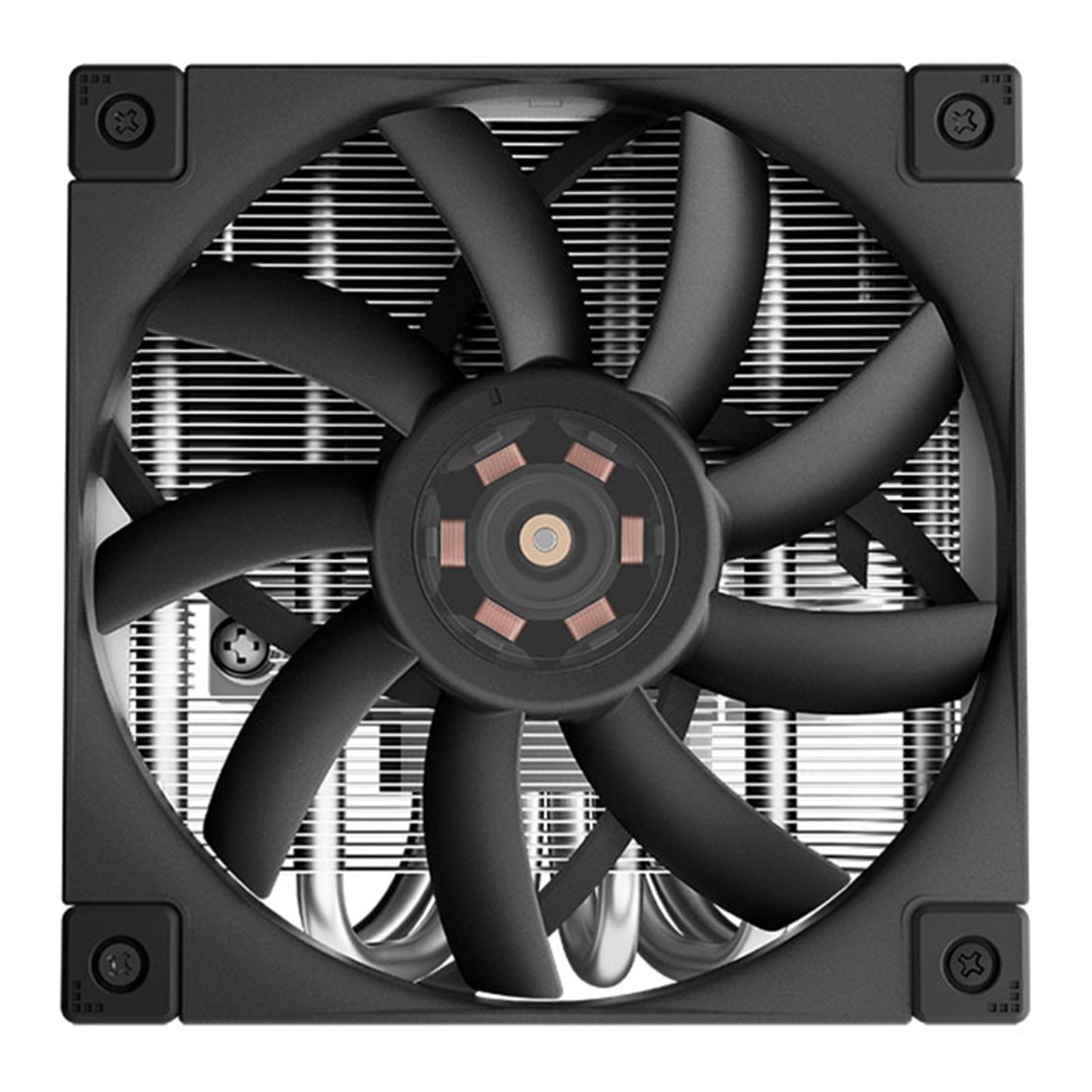

Optimized 120 mm Slim Fan
A 120 mm PWM-enabled Fluid Dynamic Bearing (FDB) fan delivers high airflow in a slim 15 mm profile. -
Quiet Operation with Noise Reduction Option
A visible 6-phase fan motor helps maintain noise levels under 24.2 dB(A), with a low-noise adapter cable included for further acoustic optimization. -
Reinforced, Easy Installation
An all-metal backplate is simple to install, distributes mounting pressure evenly, and adds reinforcement behind the CPU socket. -
ITX Motherboard Compatibility
Designed to fit ITX layouts while providing effective cooling for CPU and adjacent components.
Socket Compatibility
- Intel: LGA1700 / 1200 / 1151 / 1150 / 1155 / 1851
- AMD: AM5 / AM4
Specifications
| Category | Specification |
|---|---|
| Product Dimensions | 122 × 120 × 67 mm (L × W × H) |
| Heatsink Dimensions | 121 × 120 × 52 mm (L × W × H) |
| Net Weight | 628 g |
| Heatpipes | 6 mm × 6 pcs |
| Fan Dimensions | 120 × 120 × 15 mm (L × W × H) |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Connector | 4-pin PWM |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.27 A |
| Fan Power Consumption | 3.24 W |
| LED Type | White LED |
Fan Performance
| Mode | Speed | Airflow | Air Pressure | Noise Level |
|---|---|---|---|---|
| Standard | 500–1850 RPM ±10% | 61.56 CFM | 1.97 mmAq | ≤ 24.4 dB(A) |
| With Low-Noise Adapter (LSP) | 500–1250 RPM ±10% | 41.51 CFM | 1.19 mmAq | ≤ 20 dB(A) |
The AN600 delivers powerful top-flow, low-profile cooling with efficient CPU thermal performance and targeted airflow over RAM and VRM components—ideal for compact ITX systems where space and cooling are both critical.
