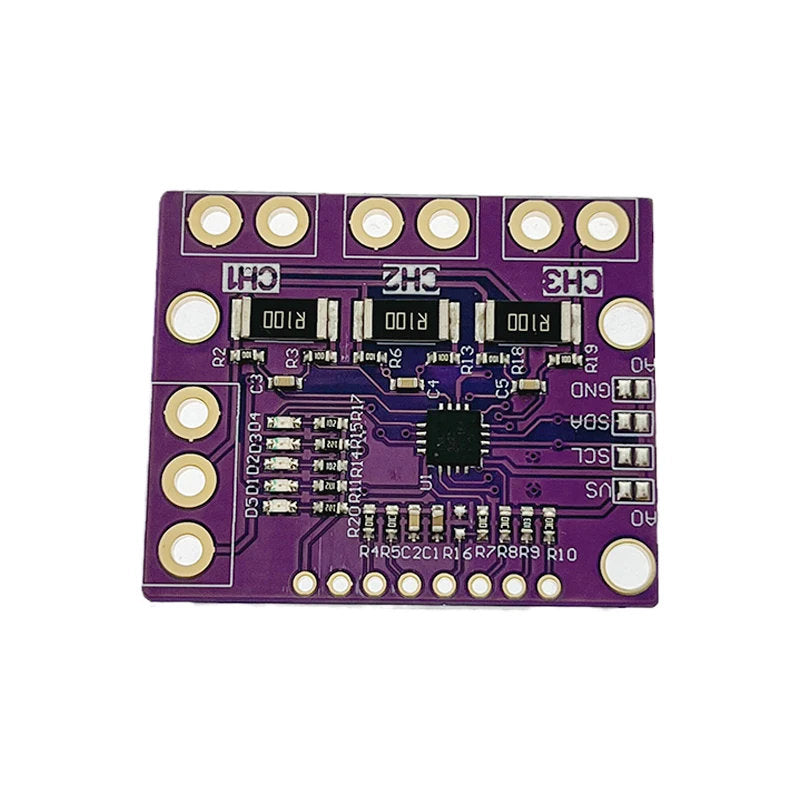

INA3221 Module
$8.00

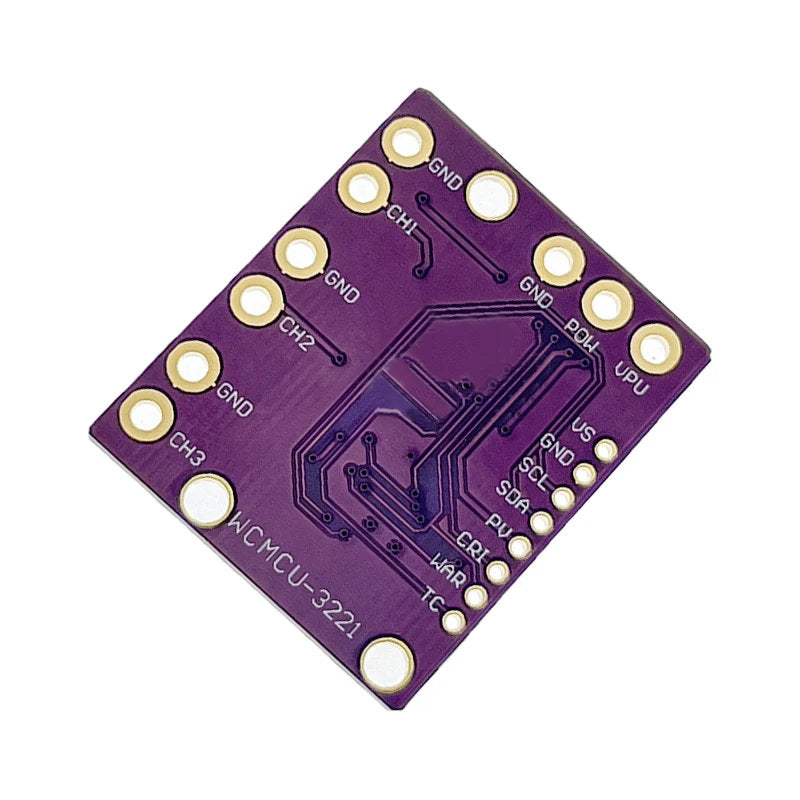

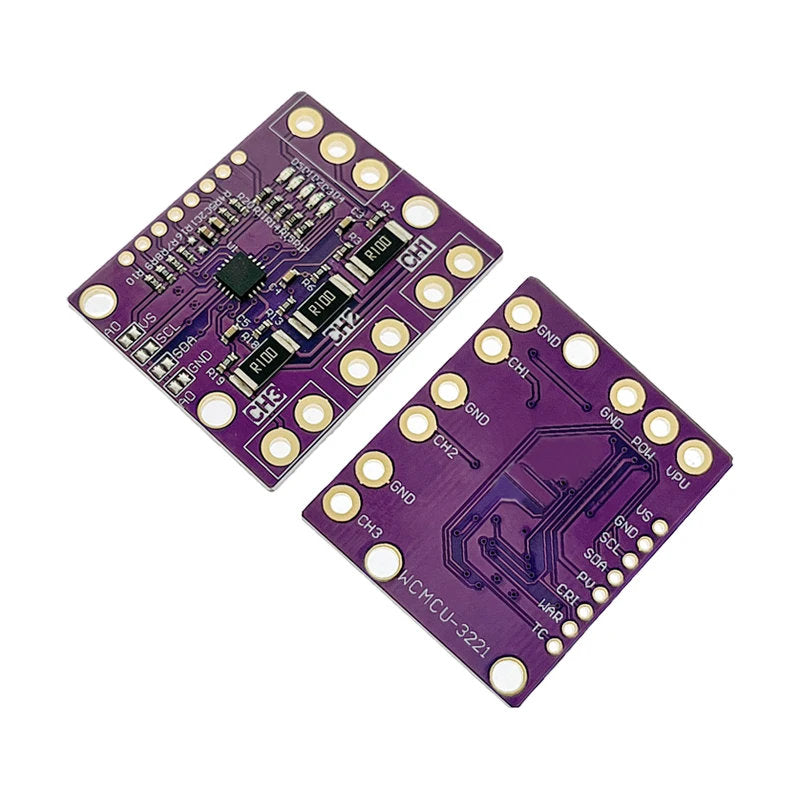

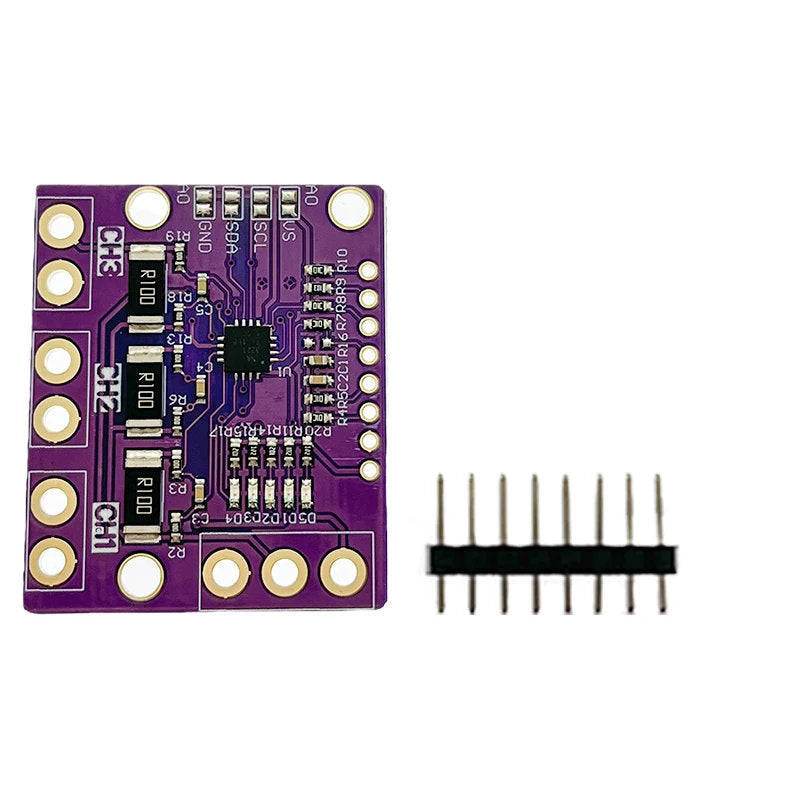

A3221 Triple-Channel Shunt Current & Voltage Sensor Board – Power Supply Monitor
The INA3221 is a triple-channel, high-side current and bus voltage monitor designed for accurate power-supply monitoring. It measures both shunt voltage drops and bus supply voltages across three independent channels, communicating via an I²C- and SMBUS-compatible interface.
With programmable conversion times and averaging modes, the INA3221 allows flexible measurement configuration. It also includes programmable critical and warning alerts to detect multiple out-of-range conditions on each channel, supporting reliable system monitoring and protection.
The device senses current on buses ranging from 0 V to 26 V and operates from a single 2.7 V to 5.5 V supply, drawing 350 µA (typical). It is specified for operation across a wide –40°C to +125°C temperature range and supports four programmable I²C addresses for system integration.
Key Features
-
Triple-channel high-side current and bus voltage monitoring
-
Senses bus voltages from 0 V to 26 V
-
Reports both shunt voltage and bus voltage
-
High accuracy performance
-
Offset voltage: ±80 µV (max)
-
Gain error: 0.25% (max)
-
-
Configurable averaging options
-
Programmable alert and warning outputs
-
Four programmable I²C addresses
Electrical Characteristics
| Parameter | Specification |
|---|---|
| Bus Voltage Range | 0 V to 26 V |
| Supply Voltage | 2.7 V to 5.5 V |
| Supply Current | 350 µA (typ) |
| Interface | I²C / SMBUS compatible |
| Operating Temperature | –40°C to +125°C |
This A3221 sensor board provides a compact and configurable solution for multi-channel current and voltage monitoring in power-supply applications.
