Texas Instruments LM324N Quad Op Amp PDIP-14 | 30V 1.2MHz
$4.00

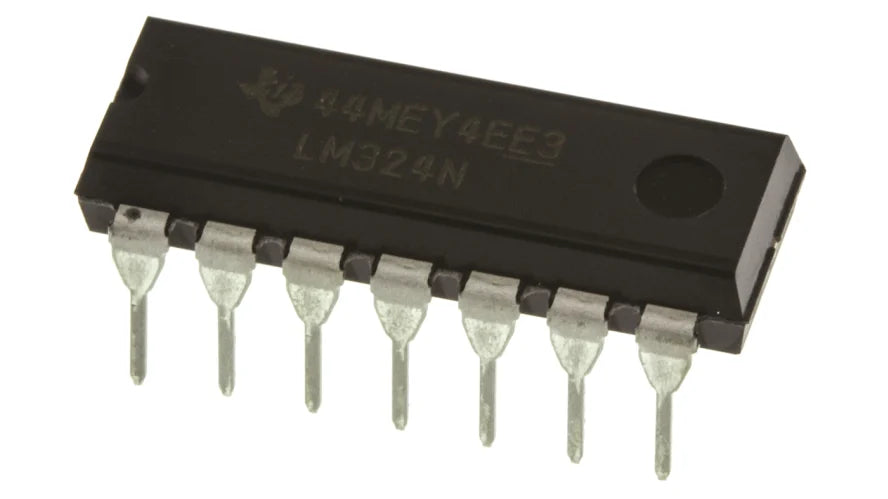

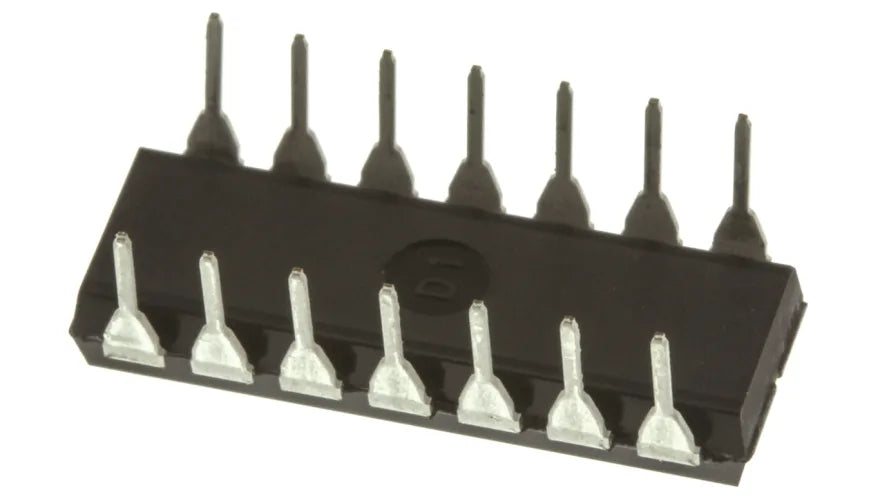

LM324N Operational Amplifier – Texas Instruments
The LM324N from Texas Instruments is a quad operational amplifier designed for through-hole mounting in a 14-pin PDIP package. It delivers stable performance across a wide supply voltage range and is suitable for general-purpose analog applications requiring multiple amplifier channels in a single device.
With a 1.2 MHz gain bandwidth product, controlled slew rate, and standard operating temperature range, the LM324N provides reliable amplification performance in space-efficient designs.
Key Features
-
Quad operational amplifier (4 channels)
-
Through-hole mounting
-
PDIP-14 package
-
Gain bandwidth product of 1.2 MHz
-
Wide supply voltage range from 5 V to 30 V
-
RoHS compliant
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Texas Instruments |
| Series | LM324 |
| Product Type | Operational Amplifier |
| Number of Channels | 4 |
| Mount Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 14 |
| Gain Bandwidth Product (GBP) | 1.2 MHz |
| Slew Rate | 0.5 V/µs |
| Minimum Supply Voltage | 5 V |
| Maximum Supply Voltage | 30 V |
| Input Bias Current | -500 nA |
| Input Offset Current | 150 nA |
| Input Offset Voltage (Vos) | 9 mV |
| Output Current | -10 mA |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 70°C |
| Automotive Standard | No |
| Standards / Approvals | RoHS |
Physical Characteristics
| Dimension | Measurement |
|---|---|
| Length | 19.3 mm |
| Width | 6.35 mm |
| Height | 4.57 mm |
