MP3 Decoder Module
$8.00

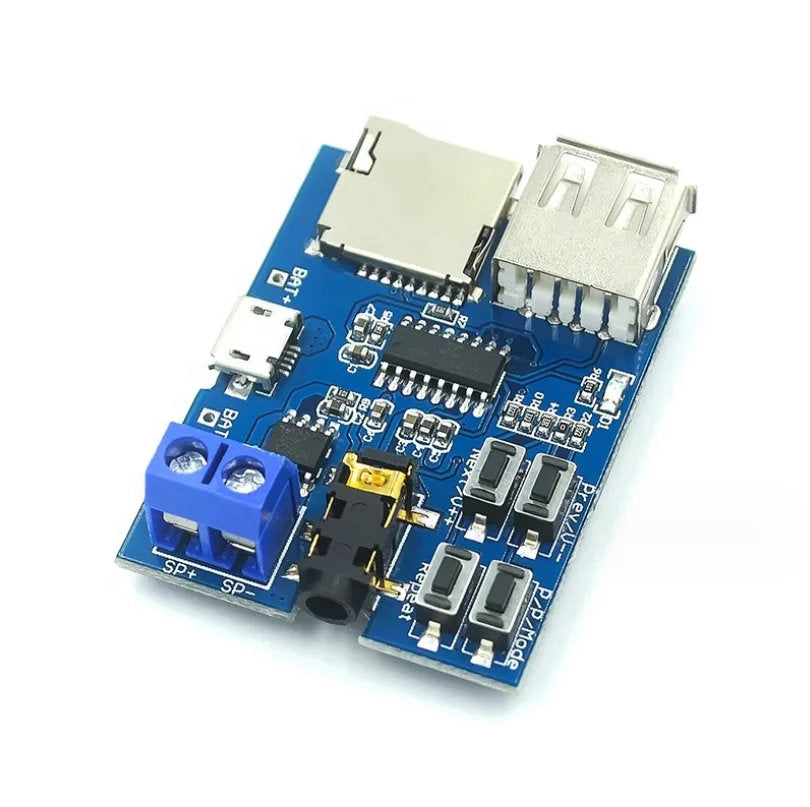

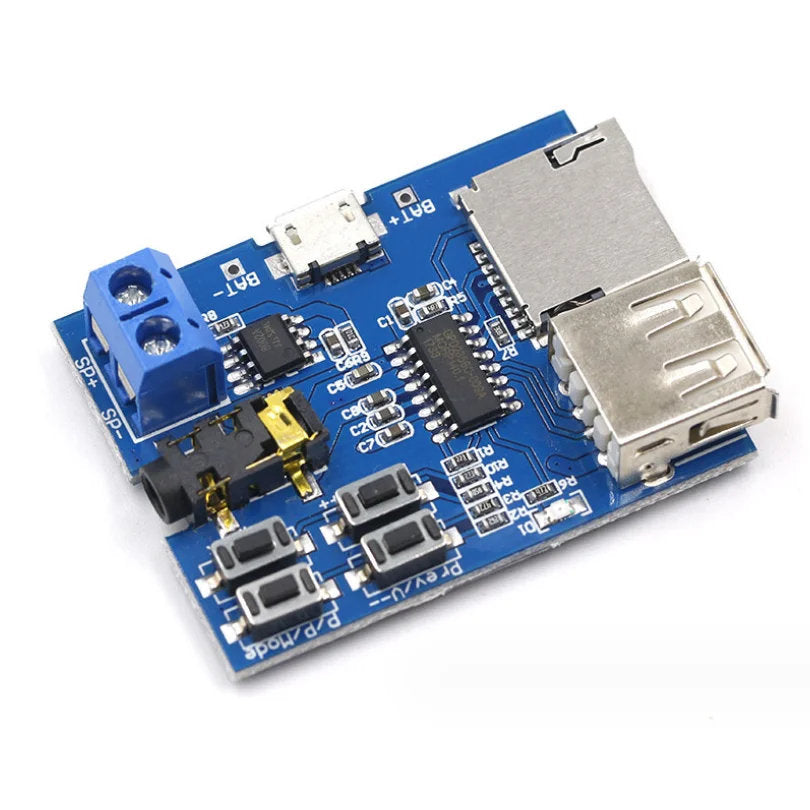

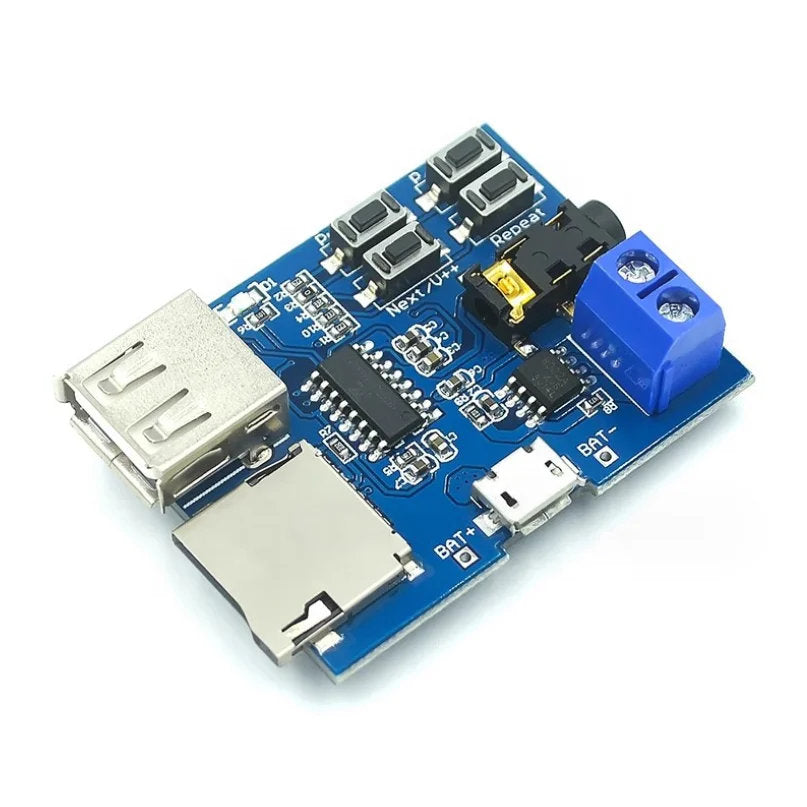

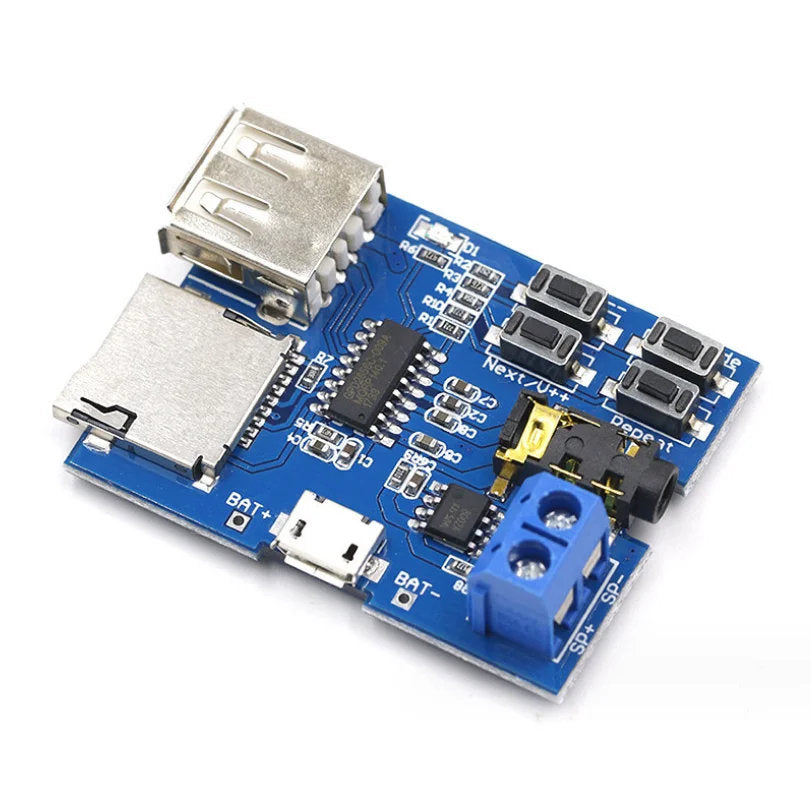

Micro SD Card & USB MP3 Decoder Board with Amplifier
Product Overview
This Micro SD Card & USB MP3 Format Decoder Board is a compact PCB amplifier player designed for easy integration and modification. It delivers superior sound quality with an onboard mono amplifier and supports multiple playback sources, making it suitable for a wide range of audio projects.
Key Features
-
Superior sound quality output
-
Built-in 2W mono amplifier (up to 3W with 5V power)
-
Direct speaker connection via terminal (recommended 8–16Ω, 3W speaker)
-
3.5mm gold-plated headphone jack for headphones or external stereo audio output
-
Micro-USB power input port
-
Powered by USB 5V supply or 3.7V lithium battery
-
Supports Micro SD / microSD cards and USB disk playback
-
No soldering required for speaker terminals, enabling easy wiring
-
Designed to facilitate modification
Playback & Functionality
-
Supports MP3 format with automatic playback on power-up
-
Red LED flashes during MP3 playback
-
Default playback mode is SD/microSD card
-
Automatically switches to USB disk mode if no SD/microSD card is detected
-
Manual mode switching available when both storage devices are installed
-
Button controls support song selection, volume adjustment, play/pause, and mode switching
-
Menu button allows selection between single-song and all-song play modes
-
Default play mode on power-up is all-song mode
-
Repeat button adjusts circulating playback mode
Key Operating Instructions
-
Prev / V-- Button
-
Press: Previous track
-
Long press (~2 seconds): Volume down
-
-
Next / V++ Button
-
Press: Next track
-
Long press (~2 seconds): Volume up
-
-
P / P / Mode Button
-
Press: Play / Pause
-
Long press: Switch between USB disk and SD/TF card mode
-
-
Repeat Button
-
Press: Toggle single-song / all-song mode
-
Product Specifications
| Specification | Details |
|---|---|
| Supported Formats | MP3 |
| Power Range | 3.7V – 5.5V |
| Supported Storage | USB disk (tested 32GB), SD/microSD card (tested 16GB) |

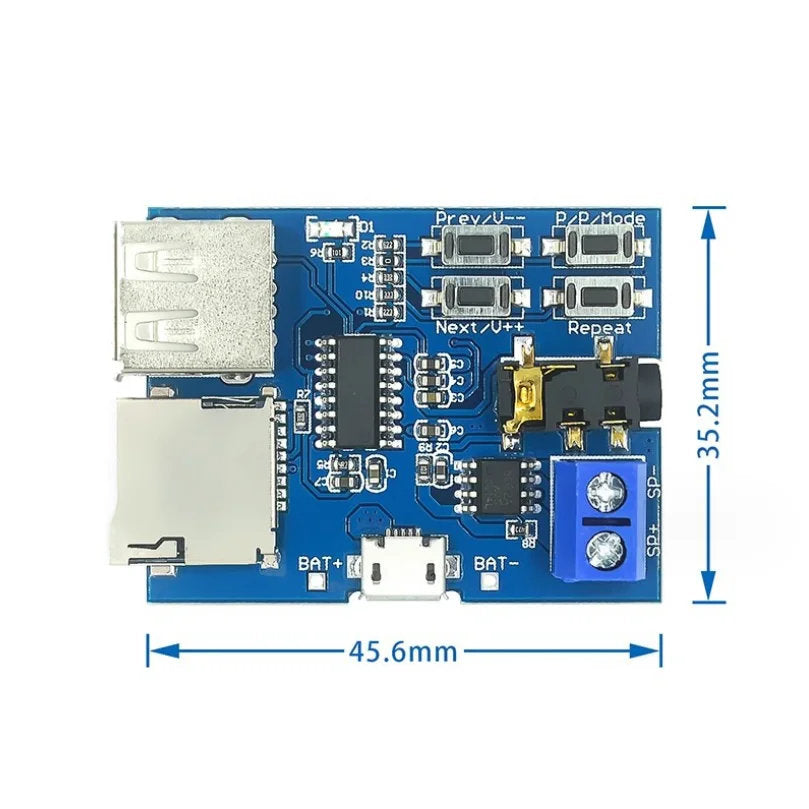

| Product Size | 45mm × 36mm |
Design & Build
-

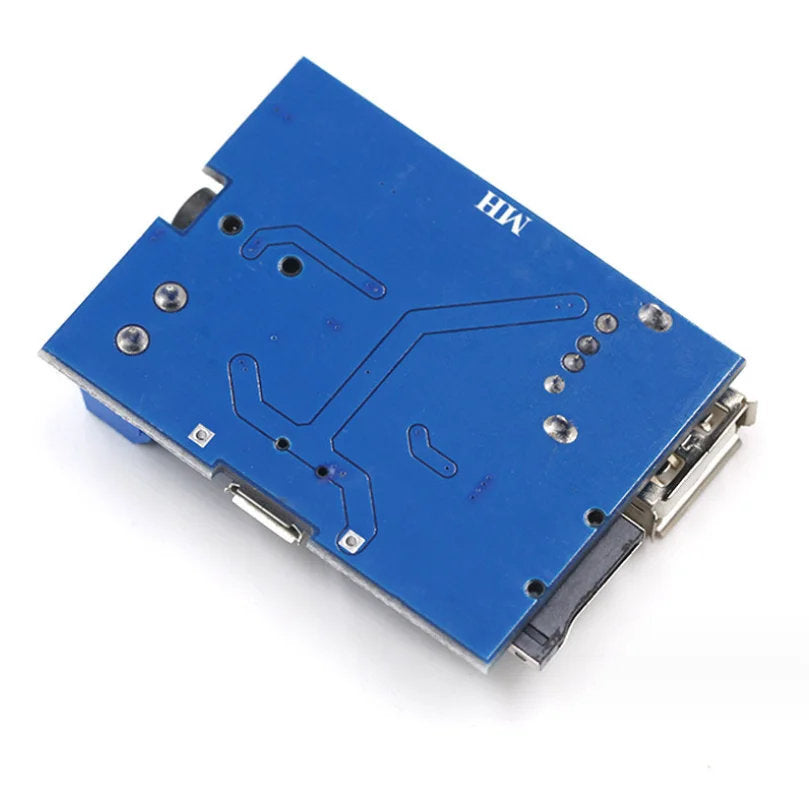

Exquisite double-board design
-
Large copper area for improved stability and reliability
-
Supplied in an anti-static bag to prevent electrostatic damage during transit
Important Notes
-
A 5V power supply is recommended when using USB disk mode, as some USB drives do not support 3.7V power
-
Overvoltage on the battery input connections will damage the board and is not covered by warranty
Package Contents
-
1 × MP3 Player Board
