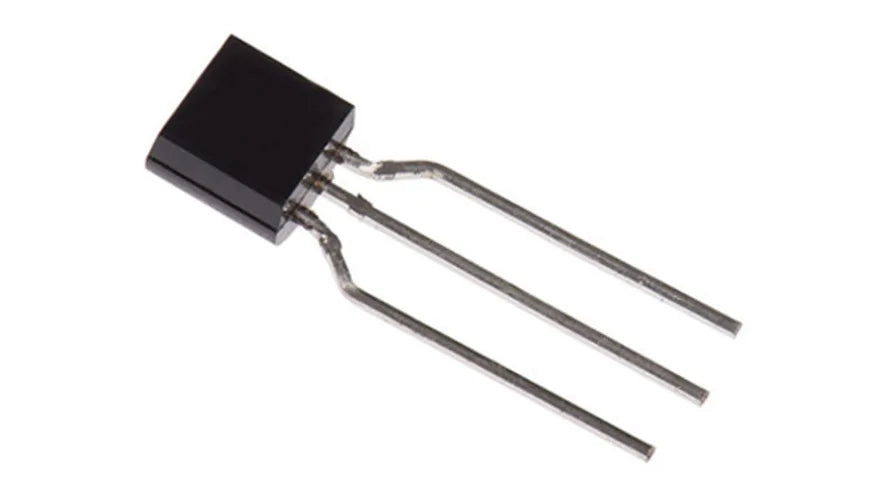

TL431AIZT Adjustable Shunt Voltage Reference TO-92 | 2.5–36V ±1%
$5.00
TL431AIZT Adjustable Shunt Voltage Reference (TO-92)
The TL431AIZT from STMicroelectronics is a precision adjustable shunt voltage reference designed for reliable voltage regulation and monitoring applications. Offering a wide adjustable output range and tight initial accuracy, it provides stable and predictable performance across a broad operating temperature range.
Key Features & Benefits
-
Adjustable reference voltage from 2.5 V to 36 V for flexible circuit design
-
High initial accuracy (±1.0%) for precise voltage control
-
Shunt topology suitable for regulation, feedback, and protection circuits
-
Wide operating temperature range from -40 °C to +105 °C
-
Compact TO-92 through-hole package for easy PCB mounting
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | STMicroelectronics |
| Reference Type | Adjustable |
| Nominal Voltage | 2.5 – 36 V |
| Minimum Output Voltage | 2.5 V |
| Maximum Output Voltage | 36 V |
| Initial Accuracy | ±1.0 % |
| Topology | Shunt |
| Maximum Output Current | 100 mA |
| Maximum Input Voltage | 37 V |
| Package Type | TO-92 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +105 °C |
| Dimensions (L × W × H) | 4.7 × 3.7 × 4.4 mm |
| Length | 4.7 mm |
| Width | 3.7 mm |
| Height | 4.4 mm |
