XL0401 Ideal Diode

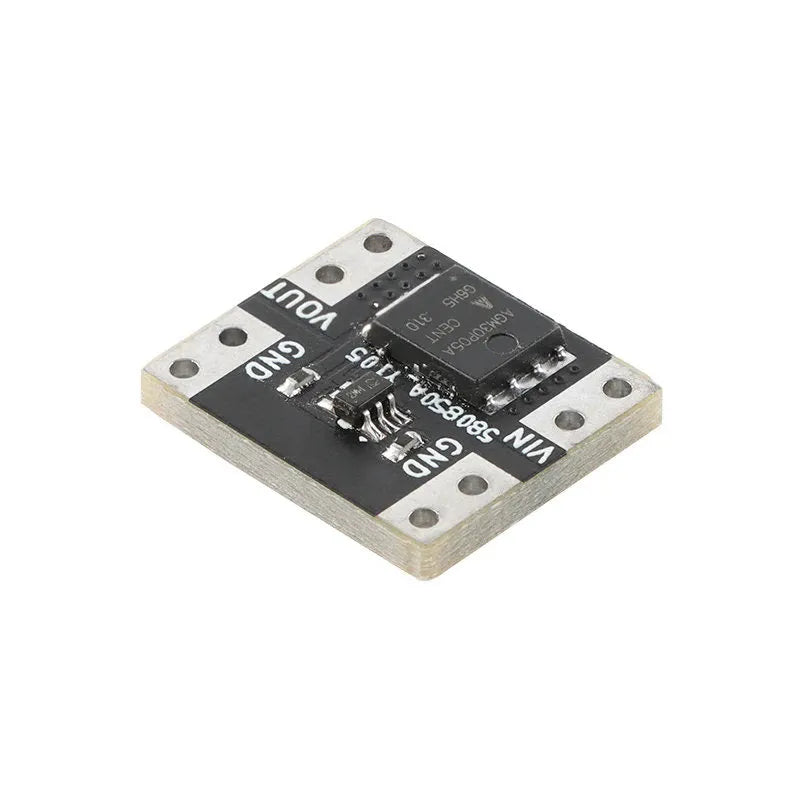

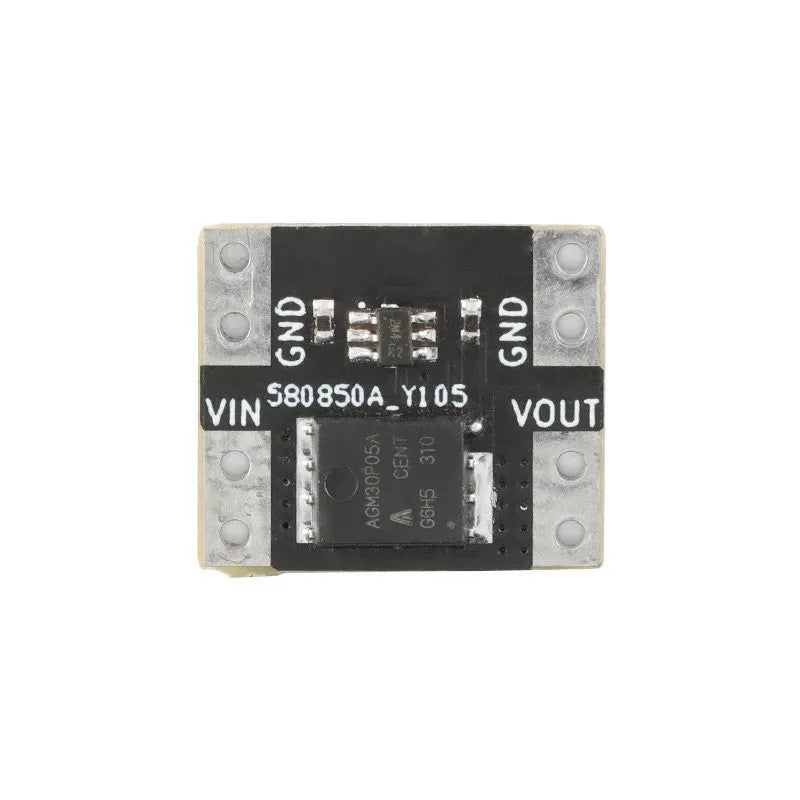

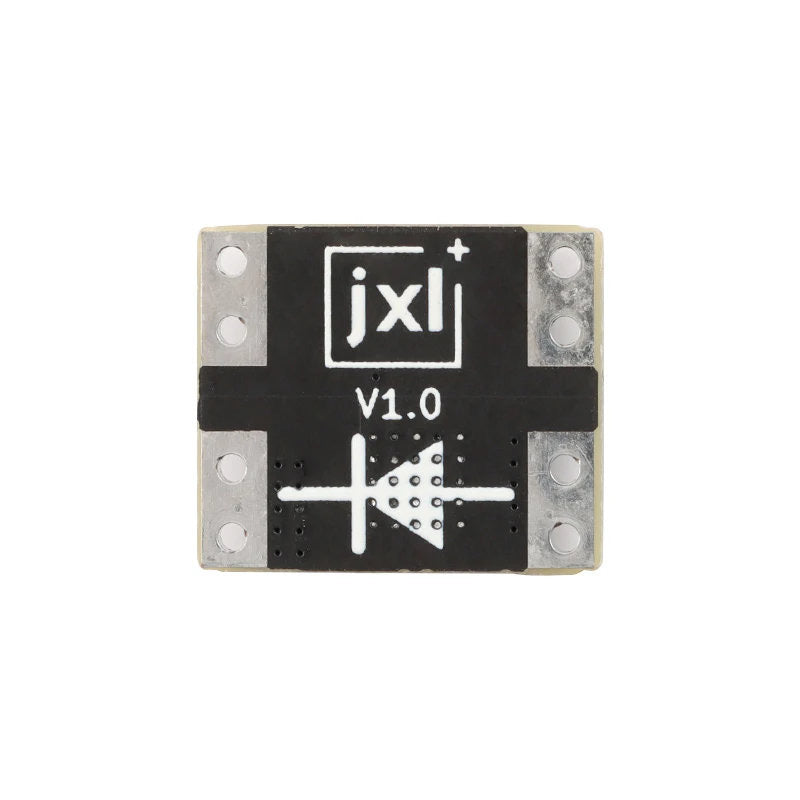

XL0401 Ideal Diode Module

Product Overview

The XL0401 Ideal Diode Module uses a dedicated control chip and low internal resistance MOSFET to accurately simulate the behavior of an ideal diode rectifier. By significantly reducing voltage drop during high-current operation, it delivers higher efficiency, lower heat generation, and improved power management performance compared to conventional diodes.

Unlike traditional rectifier diodes with a typical 0.7V voltage drop, the XL0401 minimizes energy loss and thermal stress, making it suitable for efficient rectification and backflow prevention applications.

Key Features

• High-quality dedicated chip accurately simulates ideal diode rectification characteristics

• Low-power, high-efficiency rectification improves overall charging efficiency

• Precise rectification control ensures stable and reliable diode simulation performance

• Wide input voltage range supports diverse power management and rectification scenarios

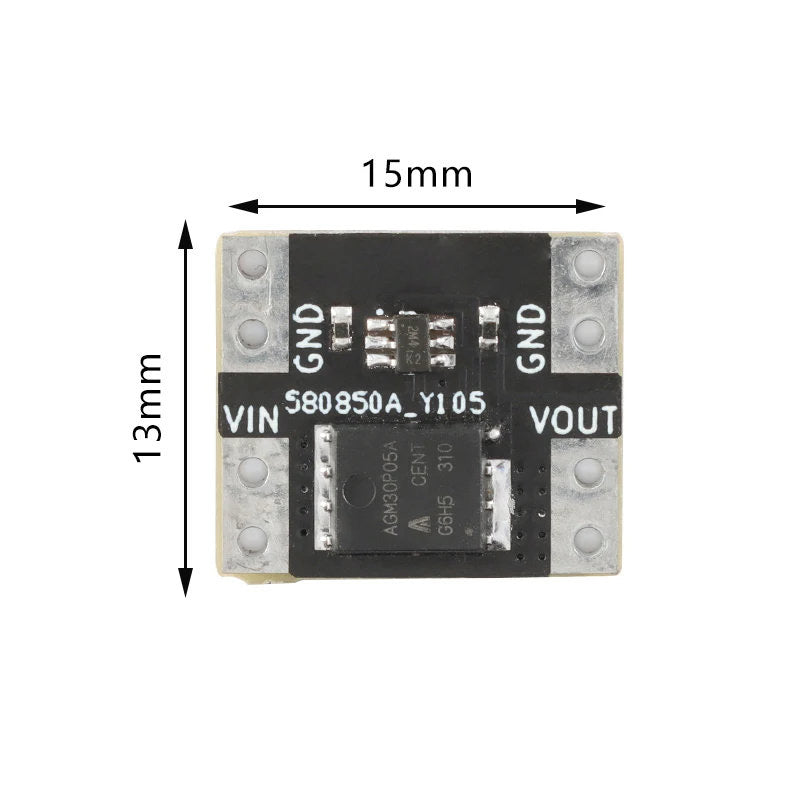

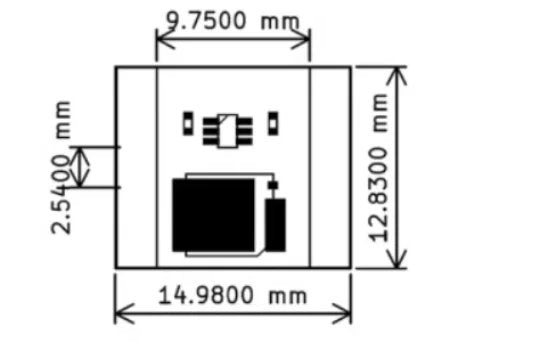

• Compact module design with excellent heat dissipation

• Stable and reliable operation with adaptability to harsh environments

Performance Advantages

• Utilizes a low internal resistance MOSFET to reduce voltage drop under high current

• Avoids the high power loss common in traditional diodes

• Example comparison:

  • 0.3V Schottky diode at 10A ≈ 3W heat generation

  • XL0401 at 10A ≈ 100mV voltage drop and ~1W heat generation

Electrical Parameters

Usage Precautions

• The module must operate with a common ground; reverse polarity connection is not allowed without reverse protection

• Cannot replace a freewheeling diode in switching power supplies, but can be used for output backflow prevention

• Minimum measured voltage drop is approximately 53mV and will not reach zero at low current

• As this is not a genuine diode, connect a large capacitor and a voltage-regulating diode at the output to prevent damage from extremely brief peak pulses

• Avoid use where the input voltage difference is excessively high when shorting outputs between two boards

• For microsecond-level voltage pulses, a slight input voltage rise may occur; testing shows a 10µs pulse at 26V input raises voltage by approximately 100–200mV

Summary

The XL0401 Ideal Diode Module provides a compact, efficient, and thermally optimized solution for diode rectification and backflow prevention. Its low voltage drop, high-current handling capability, and stable control performance make it a practical alternative to conventional rectifier diodes in power management applications.
