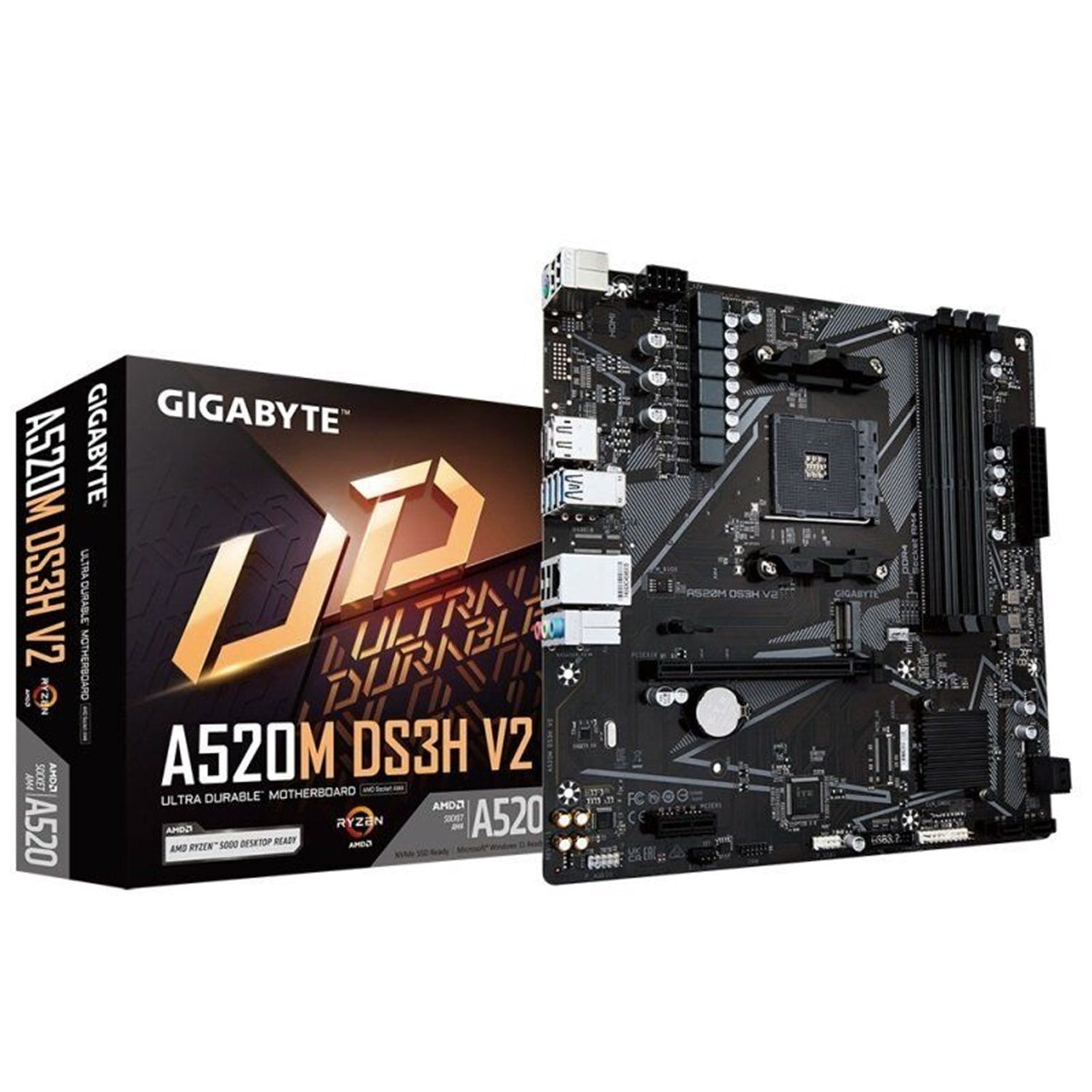

Gigabyte A520M DS3H V2 Ultra Durable AMD AM4 Socket Motherboard, Micro-ATX, 4x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port

Name: Gigabyte A520M DS3H V2 Ultra Durable AMD AM4 Socket Motherboard, Micro-ATX, 4x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port
Brand: GIGABYTE
Price: 105.00 GBP
Availability: OutOfStock

$105.00

Be the first to know when it's back in stock!

We Accept:

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Delivery and Shipping

Shipping & Processing

Order Processing

Same business-day for orders placed before 3 PM (GMT), except in rare cases when it may take 1 additional business day.
Larger or specialist items require up to 3 business days to process.

Delivery Options

Royal Mail 48

Free on orders over £20
£2.99 on orders under £20
Delivery in 2–3 business days

Tracked 24 (Next-Day) — £4.99
Standard (Large & Specialist Items)
- Free on orders over £20
- £6.99 on orders under £20
- Delivery in 2–14 business days (typically around 7 days)
- Processing may take up to 3 business days
International

We ship worldwide. Delivery options and estimated timeframes for your country are available at checkout.
Customs, duties, and import taxes are your responsibility.

You’ll receive tracking details as soon as your order ships [track your order here]. For full details, please see our [Shipping Policy].

Gigabyte A520M DS3H V2 Ultra Durable AMD AM4 Socket Motherboard, Micro-ATX, 4x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x DisplayPort / 1x HDMI Port

$105.00

GIGABYTE AMD A520 Ultra Durable Micro ATX Motherboard

The GIGABYTE AMD A520 Ultra Durable motherboard delivers a reliable, performance-focused foundation for AMD Ryzen systems, with enhanced power design, advanced cooling controls, and durability features tailored for long-lasting operation.

Key Features

AMD Socket AM4 Support
AMD Ryzen 5000 Series
AMD Ryzen 5000 G-Series
AMD Ryzen 4000 G-Series
AMD Ryzen 3000 and Ryzen 3000 G-Series Processors
Digital VRM & Low RDS(on) MOSFETs
Pure digital PWM + Low RDS(on) MOSFETs
Optimized gate charge to minimize switching losses
Lower temperature, smaller size, better thermal characteristics
Enhanced power delivery and system scalability for 3rd Gen AMD Ryzen CPUs
Memory Performance
Dual Channel ECC / Non-ECC Unbuffered DDR4
4 DIMM slots, up to 128 GB
Support for high-speed DDR4 overclocking and XMP profiles
Expansion & Storage
Ultra Durable PCIe 3.0 x16 slot
NVMe PCIe Gen3 x4 M.2 connector
4 x SATA 6Gb/s with RAID 0, 1, 10 support
Networking & Audio
Realtek GbE LAN with bandwidth management for improved network latency and low ping
High-quality audio capacitors for high resolution, high fidelity sound
Audio Noise Guard to isolate analog audio components and reduce PCB-level noise
Display Connectivity
Rear DisplayPort and HDMI for multi-display support
HDMI 2.1 with 4K/60P, 21:9, HDR, HDCP 2.3 and backward compatibility with HDMI 2.0/1.4
DisplayPort 1.4 with HDR and HDCP 2.3
Advanced Cooling: Smart Fan 5 with FAN STOP
Multiple temperature sensors
Hybrid fan headers supporting PWM and Voltage mode fans
Liquid-cooling friendly design
Fan Stop for fully stopping fans below a customizable temperature threshold
Hybrid Fan Pin Headers with automatic detection of fan or pump type
Ultra Durable & Protection Features
Anti-Sulfur resistors design for sulfurization protection
Industry-leading LAN static-electricity and surge protection
Anti-surge ICs for power spike protection
Humidity Protection Glass Fabric PCB to help prevent moisture-related short circuits
High temperature protection with Low RDS(on) MOSFETs for reduced energy wastage
Solid pin ATX 12V 8-pin power connectors for stable power under CPU load

Specifications

CPU

Feature	Details
Socket	AMD Socket AM4
CPU Support	AMD Ryzen 5000 Series / Ryzen 5000 G-Series / Ryzen 4000 G-Series / Ryzen 3000 and Ryzen 3000 G-Series Processors

Chipset

Feature	Details
Chipset	AMD A520

Memory

Feature	Details
Slots	4 x DDR4 DIMM sockets
Max Capacity	Up to 128 GB (32 GB per DIMM)
Memory Speeds	DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Architecture	Dual channel
ECC Support	ECC Un-buffered DIMM 1Rx8/2Rx8
Non-ECC Support	Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
XMP	Support for Extreme Memory Profile (XMP) modules

Onboard Graphics

Feature	Details
Integrated Graphics	Integrated Graphics Processor (CPU dependent)
DisplayPort	1 x DisplayPort, max resolution 5120x2880@60 Hz; DP 1.4, HDCP 2.3, HDR
HDMI	1 x HDMI, max resolution 4096x2160@60 Hz; HDMI 2.1, HDCP 2.3, HDR; backward compatible with HDMI 2.0/1.4
Shared Memory	Maximum shared memory of 16 GB

Audio

Feature	Details
Codec	Realtek Audio CODEC
Audio Channels	High Definition Audio, 2/4/5.1/7.1-channel support
Components	High-end audio capacitors, Audio Noise Guard

LAN

Feature	Details
Controller	Realtek GbE LAN chip (1 Gbps/100 Mbps)
Features	Bandwidth management software, static-electricity and surge protection

Expansion Slots

Slot	Interface	Details
PCIe x16	PCIe 3.0 x16	Integrated in CPU, PCIe 3.0 x16 mode
PCIe x1	PCIe 3.0 x1	Integrated in chipset, PCIe 3.0 x1 mode

Storage

Connector	Interface	Details
M.2	PCIe 3.0 / SATA	1 x M.2 Socket 3, M key, type 2280; supports SATA and PCIe 3.0 x4/x2 SSDs (integrated in CPU)
SATA	SATA 6Gb/s	4 x SATA 6Gb/s connectors (chipset); RAID 0, 1, 10 support

USB

Source	Ports	Location
CPU	4 x USB 3.2 Gen 1	Back panel
Chipset	2 x USB 3.2 Gen 1	Via internal header
Chipset	4 x USB 2.0/1.1	2 x back panel, 2 x via internal header

Internal I/O Connectors

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for GC-TPM2.0_S module only)
1 x Clear CMOS jumper

Back Panel Connectors

1 x PS/2 keyboard/mouse port
1 x DisplayPort
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 LAN port
3 x audio jacks

I/O Controller & Monitoring

Feature	Details
I/O Controller	iTE I/O Controller Chip
Monitoring	Voltage detection, temperature detection, fan speed detection, fan fail warning, fan speed control

BIOS

Feature	Details
BIOS	1 x 128 Mbit flash
Type	Licensed AMI UEFI BIOS
Standards	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Software & Utilities

Unique Features (APP Center support):

@BIOS
EasyTune
Smart Backup
System Information Viewer

Other Tools:

Q-Flash support
Xpress Install support

Bundled Software:

Norton Internet Security (OEM version)
LAN bandwidth management software

Operating System Support

Windows 11 64-bit
Windows 10 64-bit

Form Factor

Feature	Details
Form Factor	Micro ATX
Dimensions	24.4 cm x 24.4 cm

This AMD A520 Ultra Durable motherboard combines stable digital power delivery, comprehensive cooling control with Smart Fan 5 and FAN STOP, robust protection features, high-speed storage support, and flexible connectivity—ideal for building a reliable, long-lasting AMD Ryzen system.
