Gigabyte B650M AORUS ELITE AMD AM5 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 2x M.2 Socket, Fitted I/O Shield, 2.5GbE LAN, 1x DisplayPort / 1x HDMI Port

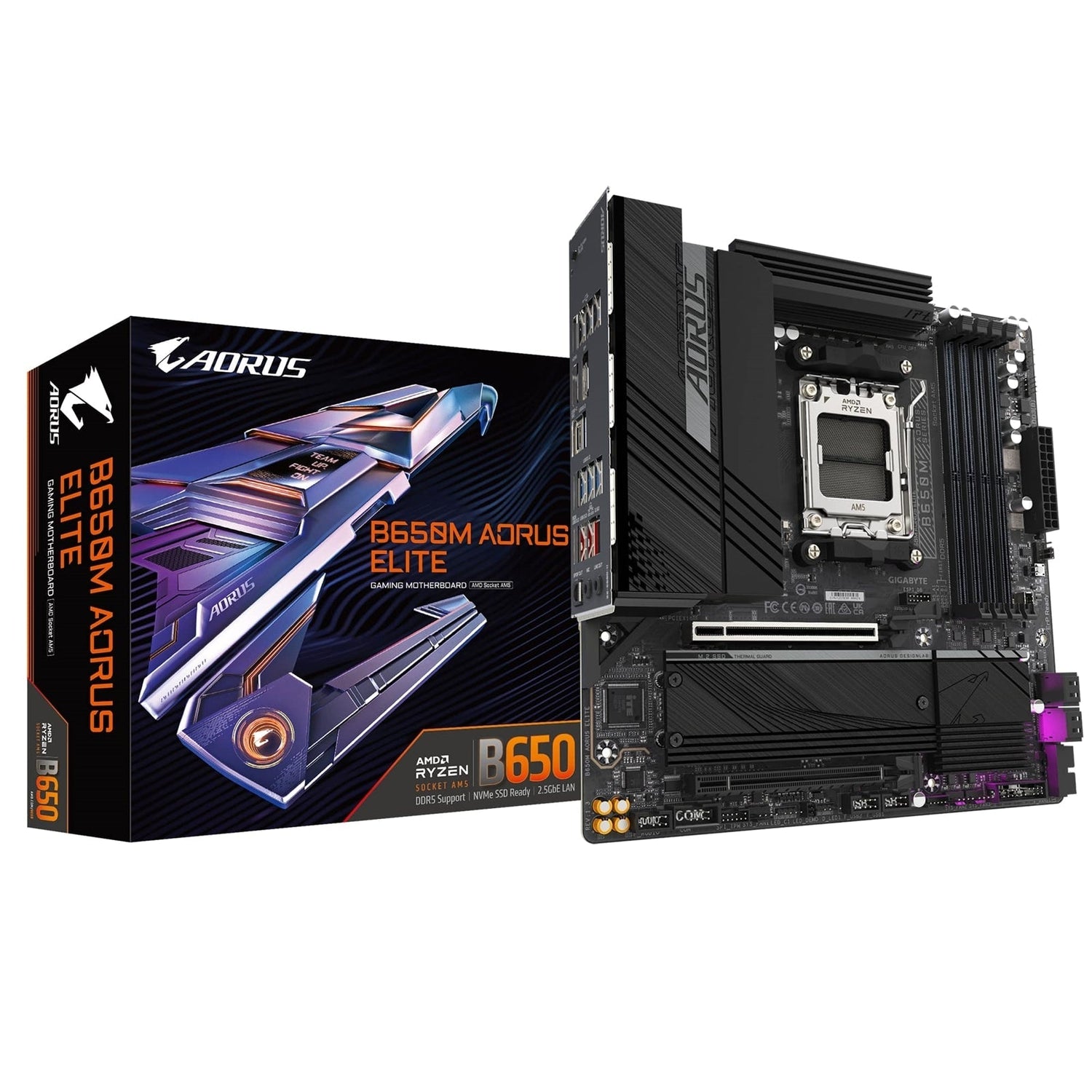

B650M AORUS ELITE Motherboard (AMD B650, AM5, microATX)

The B650M AORUS ELITE is designed for AMD Socket AM5 platforms, supporting the latest AMD Ryzen™ desktop processors with advanced power delivery, fast storage, and extensive connectivity in a compact microATX form factor.

Key Features

AMD Socket AM5 Compatibility

• Supports AMD Ryzen™ 9000 Series Processors
• Supports AMD Ryzen™ 8000 Series Processors
• Supports AMD Ryzen™ 7000 Series Processors

Unparalleled Performance

• Twin 12+2+2 phases digital VRM solution

High-Speed DDR5 Memory

• Dual channel DDR5 architecture
• 4 x DIMM slots supporting up to 256 GB (64 GB per DIMM)
• Supports DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s
• Supports non-ECC un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Supports AMD EXPO™ and Intel® XMP memory modules

(Memory support depends on CPU and configuration. See manufacturer memory support list for details.)

Superfast M.2 Storage

• 1 x PCIe 5.0 x4 M.2 connector
• 1 x PCIe 4.0 x4 M.2 connector

Advanced Thermal Design

• VRM-focused thermal design
• M.2 Thermal Guard to help maintain 25110 M.2 SSD performance

EZ-Latch Design

• PCIe x16 slot with quick-release
• M.2 connectors with screwless design

Fast Networking

• Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)

Extended Connectivity

• Display outputs: HDMI, DisplayPort
• Front USB-C® 20Gb/s (USB 3.2 Gen 2x2 via internal header)
• Rear USB-C® 10Gb/s (USB 3.2 Gen 2)

Smart Fan 6

• Multiple temperature sensors
• Hybrid fan headers with FAN STOP function

Q-Flash Plus

• Update BIOS without installing CPU, memory, or graphics card

Specifications

CPU Support

Chipset

Memory

(CPU and memory configuration may affect supported types, speeds, and module count.)

BIOS

Graphics (Integrated, CPU Dependent)

(Graphics capabilities vary by CPU.)

Audio

Audio jack functions can be reassigned via audio software. Configure 7.1-channel audio in the software.

LAN

Wireless LAN

Expansion Slots

The PCIEX16 slot can only support a graphics card or an NVMe SSD. Install a single graphics card in PCIEX16.

Storage

M2A_CPU Support: - Ryzen™ 7000 / 9000: PCIe 5.0 x4/x2
- Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2
- Ryzen™ 8000 Phoenix 2: PCIe 4.0 x4/x2

M2B_CPU Support: - Ryzen™ 7000 / 9000: PCIe 4.0 x4/x2
- Ryzen™ 8000 Phoenix 1: PCIe 4.0 x4/x2
- Ryzen™ 8000 Phoenix 2: PCIe 4.0 x2

RAID

USB Ports

From CPU - Rear:
- 1 x USB Type-C® (USB 3.2 Gen 2)
- 2 x USB 3.2 Gen 2 Type-A (red)

From CPU + USB 2.0 Hub - Rear:
- 4 x USB 2.0/1.1

From Chipset - Internal:
- 1 x USB Type-C® header (USB 3.2 Gen 2x2)
- 3 x USB 3.2 Gen 1 (1 rear, 2 internal via header)
- 4 x USB 2.0/1.1 (via internal headers)

From Chipset + USB 3.2 Gen 1 Hub - Rear:
- 4 x USB 3.2 Gen 1

Internal Connectors & Headers

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 3 x system fan headers
• 1 x system fan/water cooling pump header
• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header
• 2 x M.2 Socket 3 connectors
• 4 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C® header (USB 3.2 Gen 2x2)
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x serial port header
• 1 x THB_U4 add-in card connector
• 1 x Trusted Platform Module header (GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 only)
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

Rear Panel I/O

• 1 x Q-Flash Plus button
• 1 x DisplayPort
• 1 x HDMI port
• 1 x USB Type-C® (USB 3.2 Gen 2)
• 2 x USB 3.2 Gen 2 Type-A (red)
• 5 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 LAN port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

Form Factor

Operating System Support
