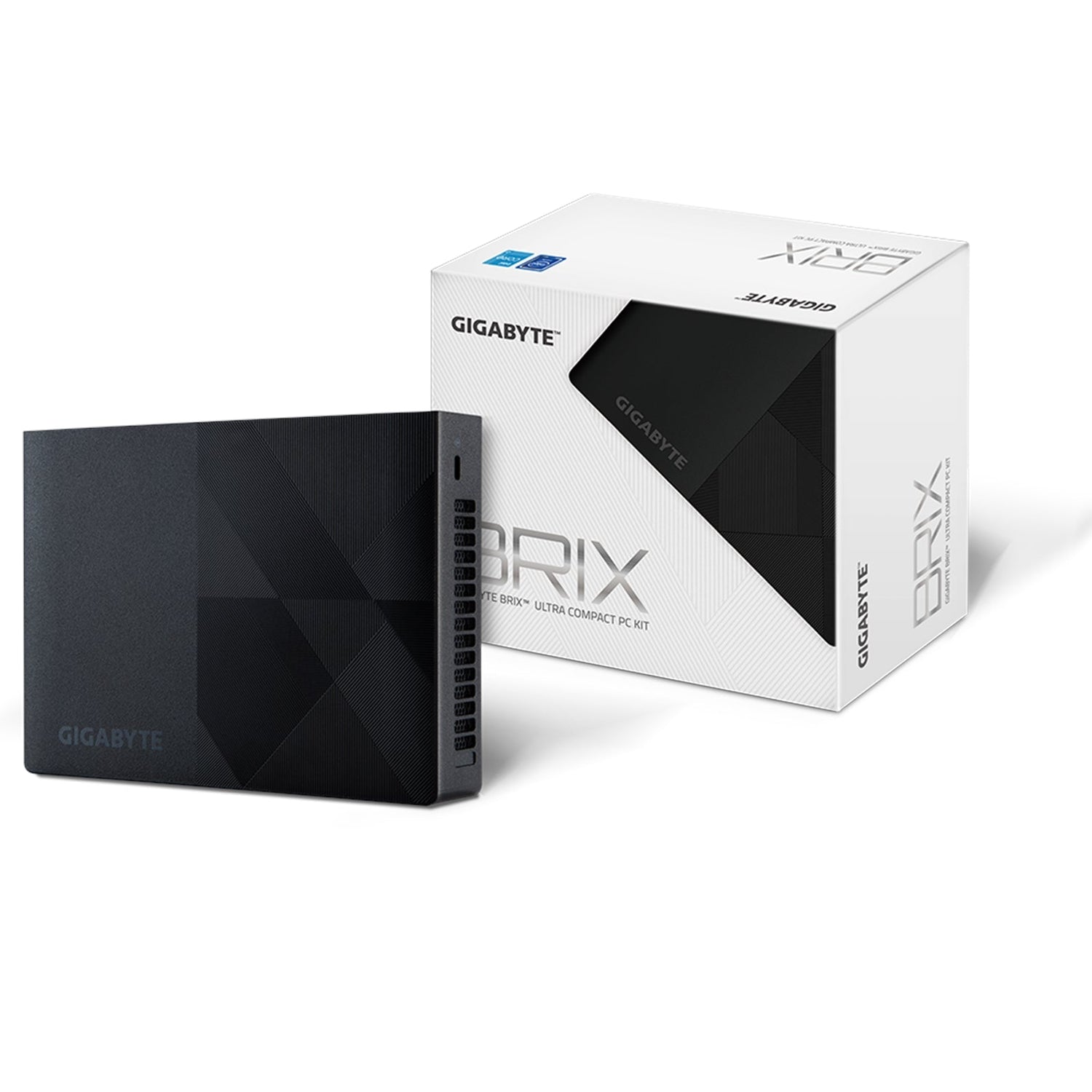

Gigabyte BRIX (GB-BN1P-N200) Barebone Kit, Intel N200 3.2GHz Quad Core CPU, 1 x DDR4 SO-DIMM Slot, 2 x M.2 2280 Slots, Wi-Fi 6 & Bluetooth 5.2
$324.00
Compact Mini PC with Dual M.2 Storage and High-Speed Connectivity
Key Features
-
USB Type-C Connector
The USB Type-C connector is reversible and supports USB 3.2 Gen2, offering transfer speeds of up to 10 Gb/s. -
HDMI 2.1 / DP 1.4 Dual Display Output
- HDMI 2.1 provides 18 Gb/s bandwidth and is backward compatible with HDMI 1.4.
-
Dual output via HDMI 2.1 and DisplayPort 1.4.
-
Dual M.2 Storage Support
Supports dual M.2 SSDs (2 x 2280) based on PCI-e/SATA technology. Users can install two M.2 SSDs for faster boot-up and application loading, plus a double-capacity HDD for media content, files, and documents. -
VESA Mounting Support
Supports 75 x 75 mm and 100 x 100 mm VESA mounting (VESA bracket purchased separately). -
Operating System Support
Supports Windows 11 64-bit.
Specifications
Dimensions
| Item | Specification |
|---|---|
| System Dimension | 163.5 x 116.8 x 28.5 mm |
| Volume | 0.54 L |
| Motherboard Size | 154 x 110 mm |
Processor (CPU)
| Item | Specification |
|---|---|
| CPU | Intel® Processor N200 |
| Frequency | 3.2G–3.7G Turbo |
| Cores/Threads | 4C/4T Core |
| Cache | 6MB L3 Cache |
Memory
| Item | Specification |
|---|---|
| Slot | 1 x SO-DIMM DDR4 |
| Frequency | 3200 MHz |
| Maximum Capacity | Max. 32 GB |
Networking
| Item | Specification |
|---|---|
| LAN | 2.5GbE LAN (Realtek RTL8125) |
| Wi-Fi | Intel AX101 Wi-Fi 6 ; 802.11ax ; 2.4 & 5 GHz |
Graphics & Audio
| Item | Specification |
|---|---|
| Integrated Graphics | Intel UHD Graphics 750 |
| Audio | Realtek ALC897 |
| HDMI Resolution (Max.) | HDMI 2.1, supports 4K@60P HDR10 |
| Mini DP Resolution (Max.) | DP 1.4, supports 4K@60P HBR2 |
Storage
| Item | Specification |
|---|---|
| M.2 Slot 1 | 1 x M.2 2280 slot for SSD (PCI-e x2 or SATA) |
| M.2 Slot 2 | 1 x M.2 2280 slot for SSD (PCI-e x2) |
Expansion Slots
| Item | Specification |
|---|---|
| M.2 2280 #1 | 1 x M.2 2280 slot for SSD (PCI-e x2 or SATA) |
| M.2 2280 #2 | 1 x M.2 2280 slot for SSD (PCI-e x2) |
| M.2 2230 | 1 x M.2 2230 slot (PCI-e x1; A-E key slot occupied by the Wi-Fi+Bluetooth card) |
I/O Ports
Front I/O
- 1 x Power Button
- 1 x USB 3.2 Gen2 Type-A
- 1 x USB 3.2 Gen2 Type-C
- 1 x Headphone / Microphone
Rear I/O
- 2 x HDMI 2.1
- 1 x 2.5 GbE RJ45
- 3 x USB 2.0 Type-A
- 1 x USB 3.2 Gen2 Type-A
- 1 x DC-In
- 1 x DP 1.4
- 1 x Kensington lock slot
Power Supply
| Item | Specification |
|---|---|
| Input | AC 100–240 V |
| Output | DC 19 V / 3.42 A, 65 W |
VESA Support
| Item | Specification |
|---|---|
| VESA Support | Supports 75 x 75 mm and 100 x 100 mm |
| Note | VESA bracket to be purchased separately |
Environment
| Item | Specification |
|---|---|
| Operating Temperature (System) | 0°C to +35°C |
| Storage Temperature (System) | -20°C to +60°C |
