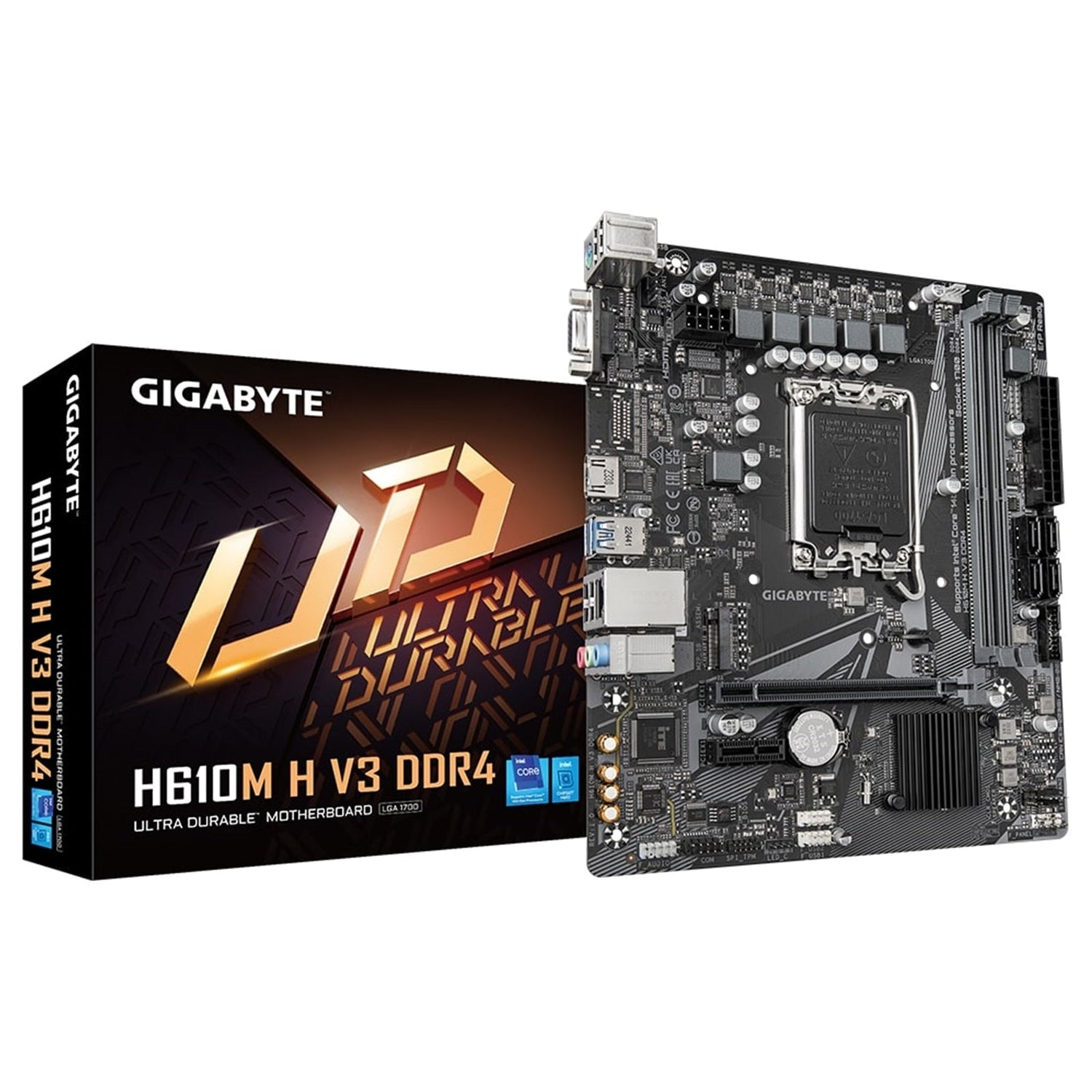

Gigabyte H610M H V3 DDR4 Ultra Durable Intel 1700 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x HDMI Port

GIGABYTE H610M H V3 DDR4 (rev. 1.0)

Intel H610 Micro ATX Motherboard

The GIGABYTE H610M H V3 DDR4 (rev. 1.0) motherboard delivers a compact Intel H610 platform with a 4+1+1 Hybrid Digital VRM, PCIe 4.0 support, Gen3 x4 M.2, Smart Fan 6, and Anti-Sulfur resistors for enhanced durability and stability.

Key Features

• Supports Intel Core 14th / 13th / 12th Gen, Pentium Gold & Celeron processors (LGA1700)
• Dual Channel DDR4, 2 x DIMM, up to 64 GB (32 GB per DIMM)
• 4+1+1 Hybrid Digital VRM Design with Low RDS(on) MOSFETs
• PCIe 4.0 x16 slot with reinforced design
• NVMe PCIe 3.0 x4 M.2 slot (Socket 3, M key)
• Realtek GbE LAN with bandwidth management
• High quality audio capacitors & Audio Noise Guard
• Smart Fan 6 with multiple temperature sensors and hybrid fan headers (FAN STOP)
• GIGABYTE APP Center and utilities
• Anti-Sulfur Resistors for enhanced reliability
• Micro ATX form factor (22.3 cm x 19.3 cm)

Power Design: 4+1+1 Hybrid Phases

• 4+1+1 Phases Hybrid Power Design
• Low RDS(on) MOSFETs
• Solid capacitors to improve transient response and minimize oscillation
• 8-pin solid pin CPU power connector
• Cleaner, more efficient power delivery and improved thermal performance help maintain stability under high CPU frequencies and heavy loading

PCIe 4.0 Design

• 1 x PCIe 4.0 x16 slot
• Reinforced PCIe 4.0 x16 slot design
• PCIe 4.0 Ready PCB with low signal loss

Memory & Single 32 GB Support

• Maximum memory capacity: 64 GB
• Up to 32 GB per single DDR4 DIMM slot
• 2 DIMM slots support up to 64 GB total
• Provides additional memory headroom for memory-intensive applications such as rendering and video editing

Smart Fan 6 Cooling

Smart Fan 6 provides advanced cooling controls to keep systems cool and quiet.

Headers & Sensors

• 3 x PWM/DC fan headers
• 4 x internal temperature sensors

Cooling Features

• High current support: each fan header supports PWM/DC fans and water cooling pumps, up to 24W (12V x 2A) with over-current protection
• Precision fan control: up to 7 temperature/fan speed control points per fan curve
• Dual curve mode: Slope/Stair modes for different scenarios
• Fan Stop: fans can stop completely below user-defined temperature thresholds

Hybrid Cores Optimization

• Dedicated “CPU Upgrade” BIOS profiles to optimize Intel Hybrid technology by adjusting P-Core and E-Core activation and voltage policies for different usage scenarios

Connectivity & Networking

GbE LAN with Bandwidth Management

• Realtek GbE LAN chip (1 Gbps / 100 Mbps / 10 Mbps)
• Network bandwidth management software helps improve latency and maintain low ping in busy LAN environments

NVMe PCIe Gen3 x4 M.2

• 1 x M.2 connector (Socket 3, M key, type 2280/2260)
• Supports PCIe 3.0 x4/x2 SSDs to maximize system storage performance

Audio

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel audio support
• High-end audio capacitors for high-resolution, high-fidelity sound
• Audio Noise Guard design to separate sensitive analog audio from PCB-level noise

Solid Pin Power Connectors

• Solid plated ATX 24-pin and 8-pin 12V power connectors
• Benefits include:
• Larger contact area for electricity
• More metal content to sustain higher power and heat

Anti-Sulfurization Protection

• Anti-Sulfur resistors help prevent failure caused by sulfur compounds penetrating tiny onboard resistors, enhancing long-term durability and reliability

BIOS & Software

• AMI UEFI BIOS with new GUI and user-friendly features for easier setup and optimization
• Supports:
• APP Center
• @BIOS
• EasyTune
• Smart Backup
• System Information Viewer

• Q-Flash

• Bundled software:

• Norton Internet Security (OEM version)
• LAN bandwidth management software

Specifications

CPU

• Socket: LGA1700
• Supports:
• 14th, 13th, and 12th Gen Intel Core processors
• Intel Pentium Gold and Celeron processors
• L3 cache varies by CPU

Chipset

• Intel H610 Express Chipset

Memory

• Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
• 2 x DDR4 DIMM sockets, up to 64 GB total (32 GB per DIMM)
• Dual channel memory architecture
• Supports:
• ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode)
• Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
• Extreme Memory Profile (XMP) modules

Onboard Graphics

Integrated Graphics Processor – Intel HD Graphics support:

• 1 x D-Sub port
• Max resolution: 1920x1200 @ 60 Hz
• 1 x HDMI port
• Max resolution: 4096x2160 @ 60 Hz

Audio

• Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel support

LAN

• Realtek GbE LAN chip
• 1 Gbps / 100 Mbps / 10 Mbps

Expansion Slots

• CPU:
• 1 x PCI Express x16 slot, PCIe 4.0, running at x16
• Chipset:
• 1 x PCI Express x1 slot, PCIe 3.0, running at x1

Storage Interface

• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2280/2260, PCIe 3.0 x4/x2 SSD support)
• 4 x SATA 6 Gb/s connectors

USB

• Chipset:
• 4 x USB 3.2 Gen 1 ports (2 rear, 2 via internal header)
• 4 x USB 2.0/1.1 ports on the back panel
• Chipset + USB 2.0 Hub:
• 4 x USB 2.0/1.1 ports via internal headers

Internal I/O Connectors

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 2 x system fan headers
• 1 x M.2 Socket 3 connector
• 4 x SATA 6 Gb/s connectors
• 1 x RGB LED strip header
• 1 x front panel header
• 1 x front panel audio header
• 1 x speaker header
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
• 1 x serial port header
• 1 x Clear CMOS jumper
• 1 x chassis intrusion header

Back Panel Connectors

• 1 x PS/2 keyboard/mouse port
• 1 x D-Sub port
• 1 x HDMI port
• 2 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 LAN port
• 3 x audio jacks

I/O Controller

• iTE I/O Controller Chip

Hardware Monitoring

• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Fan fail warning
• Fan speed control

BIOS

• 1 x 128 Mbit flash
• AMI UEFI BIOS
• Supports:
• PnP 1.0a
• DMI 2.7
• WfM 2.0
• SM BIOS 2.7
• ACPI 5.0

Operating System Support

• Windows 11 64-bit
• Windows 10 64-bit

Form Factor

• Micro ATX
• Dimensions: 22.3 cm x 19.3 cm
