LD2410C

$10.00

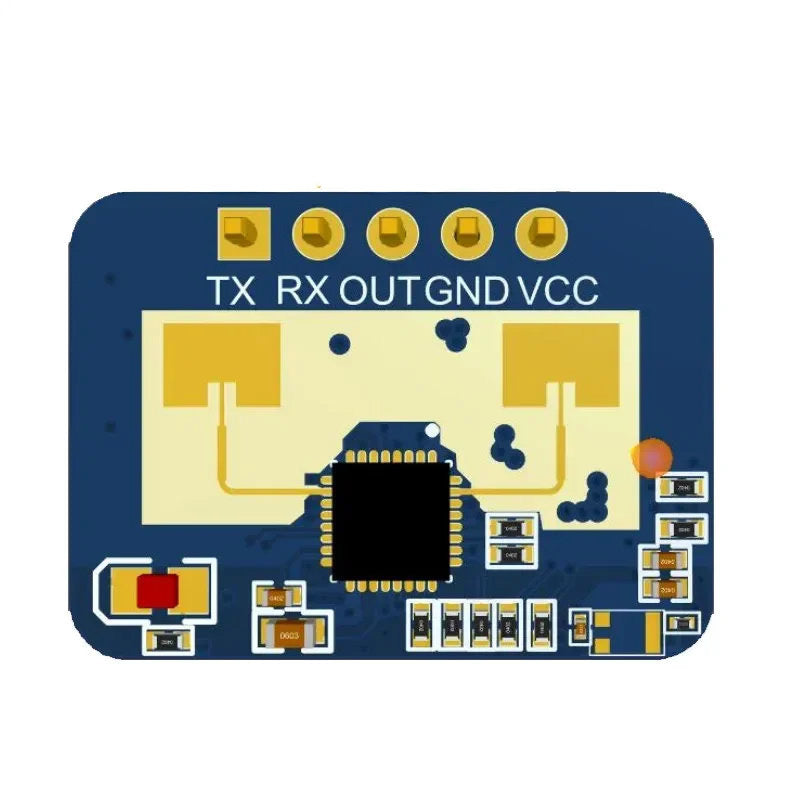

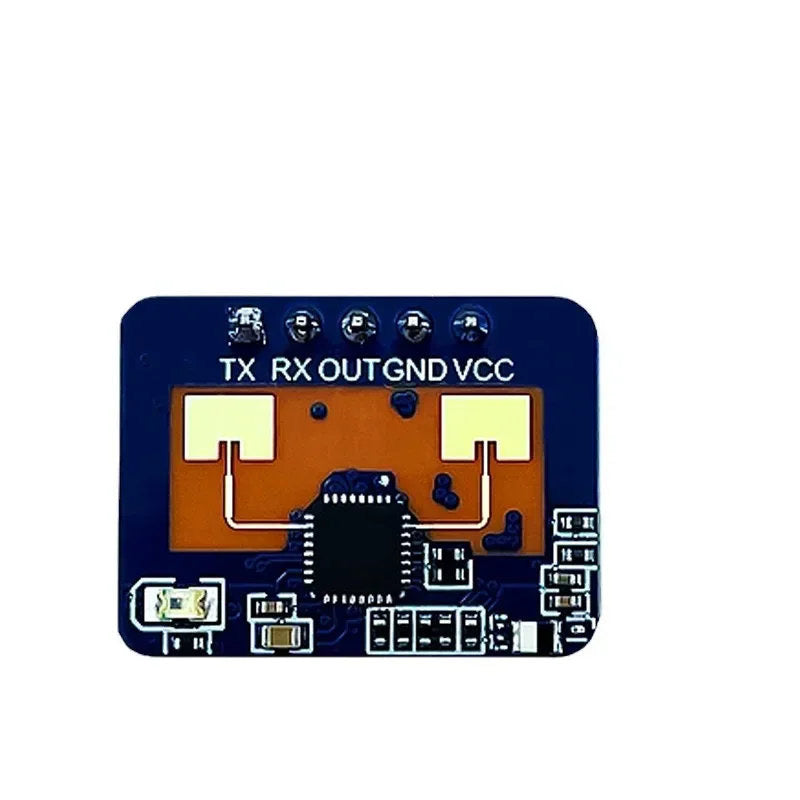

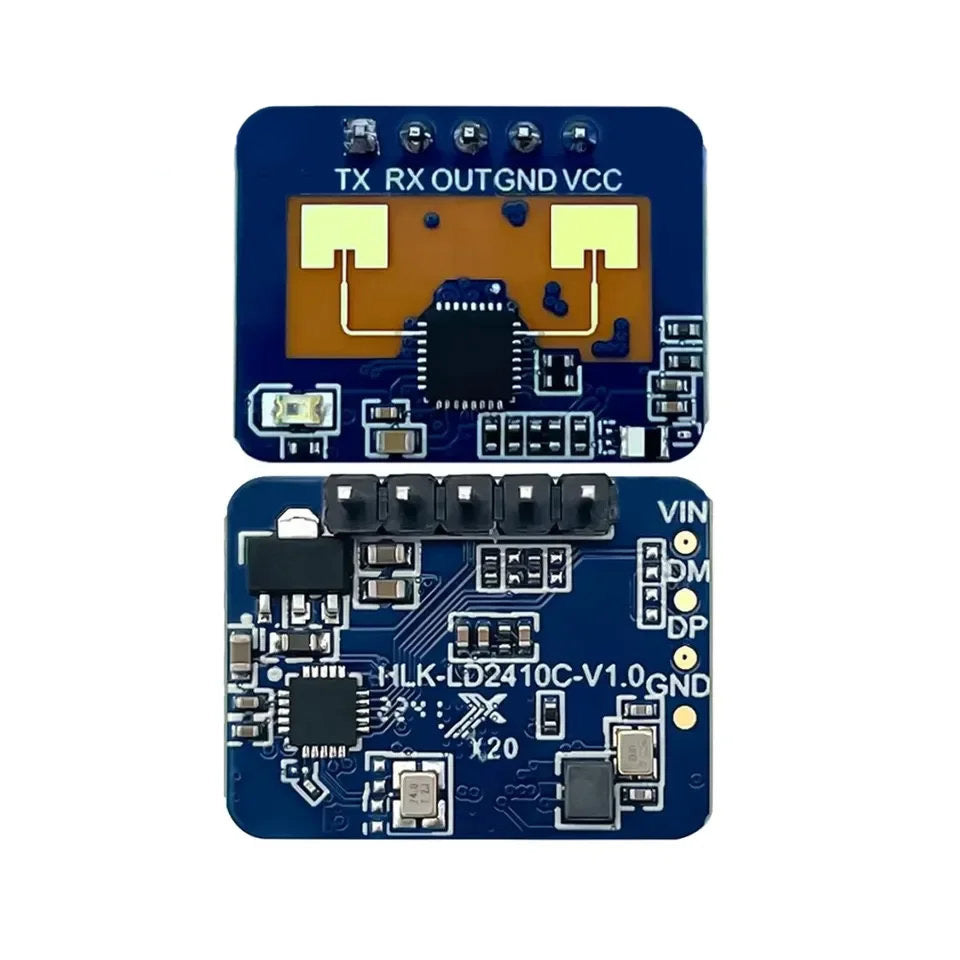

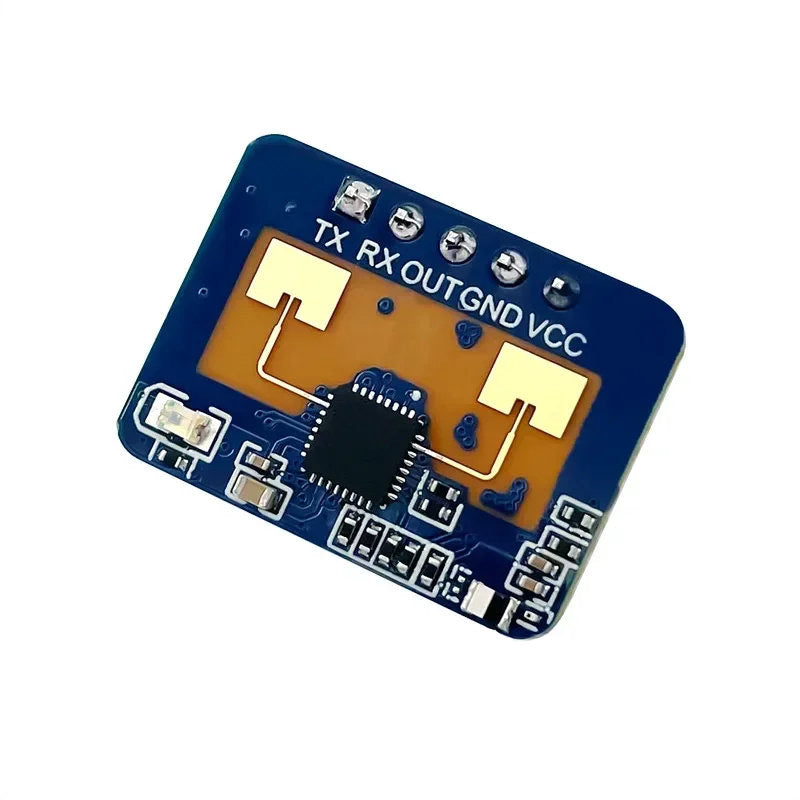

LD2410C 24GHz Radar Human Presence Sensor Module

Product Overview

The HLK-LD2410C is a high-sensitivity 24GHz millimeter-wave radar human presence sensing module developed by Hilink Electronics. Based on FMCW (Frequency-Modulated Continuous Wave) radar technology, it combines radar signal processing with an accurate human body detection algorithm to achieve reliable human presence sensing.

The module can identify both moving and stationary human bodies, including micro-movements, and can calculate auxiliary information such as target distance. It is designed primarily for indoor applications, providing real-time detection results with flexible configuration to meet different scene requirements.

Key Features

Plug-and-play design for easy assembly
High-sensitivity 24GHz radar sensing
Detects moving and stationary human presence, including micro-motion
Maximum sensing distance up to 6 meters
Distance resolution of 0.75 m
Effective sensing distance commonly up to 5 meters
Wide detection angle of ±60°
Supports segmented sensing ranges and interference shielding outside defined intervals
Multi-level intelligent parameter adjustment for different environments
Visual debugging and configuration tool
Supports GPIO and UART output
Compact size: 22 × 16 mm (0.86 × 0.63 in)
Supports ceiling and wall mounting
Operates in the 24GHz ISM band, compliant with FCC and CE spectrum regulations
5–12V wide-voltage power supply
Cost-effective solution for human presence detection

Benefits

Detects not only moving people, but also static, micro-moving, sitting, or lying human bodies that traditional solutions may miss
Stable performance unaffected by environmental factors such as temperature, brightness, humidity, or light changes
Strong shell penetration allows concealed installation without surface openings, improving product aesthetics
Flexible configuration of sensing distance and sensitivity for each distance interval, enabling fine-grained personalization

Technical Specifications

Parameter	Details
Model	LD2410C
Sensing Technology	24GHz FMCW millimeter-wave radar
Maximum Sensing Distance	Up to 6 m
Effective Sensing Distance	Up to 5 m
Distance Resolution	0.75 m
Detection Angle	±60°
Output Interfaces	GPIO, UART
Power Supply	5–12V
Band	24GHz ISM
Compliance	FCC, CE
Size	22 × 16 mm (0.86 × 0.63 in)
Material	PTFE
Color	As shown
