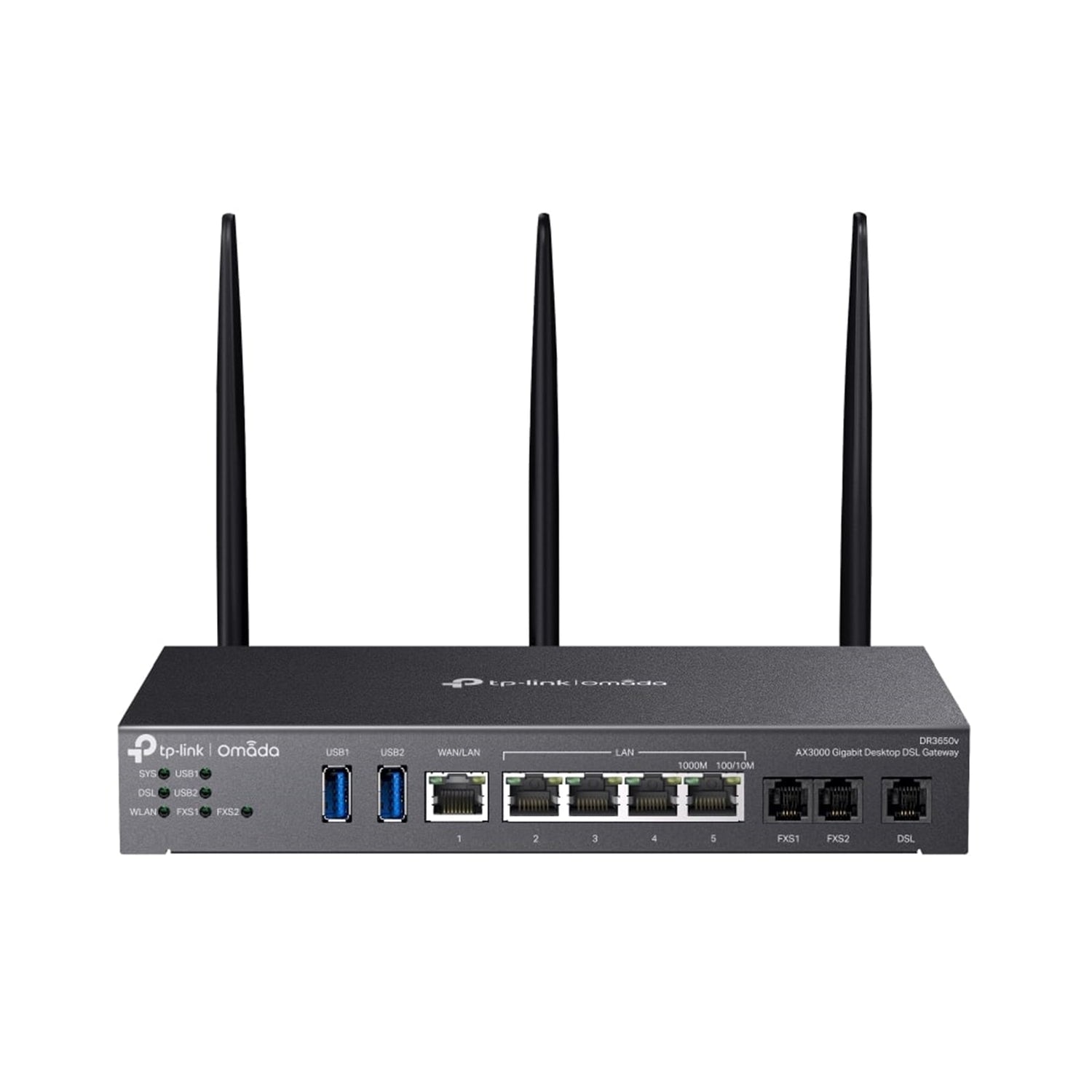

TP-Link Omada DR3650V AX3000 Wi-Fi 6 Gigabit Desktop VDSL Gateway Modem Router

Omada AX3000 Wi‑Fi 6 Gigabit Desktop DSL Gateway

The Omada AX3000 Wi‑Fi 6 Gigabit Desktop DSL Gateway delivers high-speed wireless and wired connectivity with advanced VPN, security, and centralized cloud management capabilities.

Key Features

• AX3000 Wi‑Fi 6 Performance
• 5 GHz: 2402 Mbps

• 2.4 GHz: 574 Mbps

• High-Speed DSL Access

• VDSL2 35b with support for 350 Mbps DSL access

• VDSL2/ADSL2+/ADSL2/ADSL compatibility

• Advanced VPN Support

• IPSec, PPTP, L2TP, OpenVPN, WireGuard, GRE, SSL VPN

• Intelligent WAN & Mesh

• Load balancing between DSL and Ethernet WAN

• Omada Mesh technology*3

• Flexible Connectivity

• 3 x RJ11 ports (2 x FXS, 1 x DSL)
• 5 x RJ45 Gigabit ports

• 2 x USB 3.0 ports

• Easy Deployment

• Desktop or wall mounting

• Centralized cloud management

• Compact Size

• 8.9 x 5.2 x 1.4 in (226 x 131.2 x 35 mm)

Hardware Specifications

Wireless Specifications

Wi‑Fi Frequency & Signal Rate

• 2.4 GHz: 574 Mbps
• 5 GHz: 2402 Mbps (HE160)

Wireless Features

• Seamless roaming
• Mesh (with EAP that supports Mesh)
• OFDMA
• Beamforming
• MU‑MIMO
• Wireless encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise
• Guest network support

Security Features

Access Control & Filtering

• Source/destination IP-based access control
• Web group filtering*5
• URL filtering
• Web security*5

ARP Protection

• ARP inspection
• Sending GARP packets
• ARP scanning*5
• IP‑MAC binding

Attack Defense

• TCP/UDP/ICMP flood defense
• Block TCP scan (Stealth FIN/Xmas/Null)
• Block ping from WAN

Performance

GRE

• Unencrypted: 624.2 Mbps
• Encrypted: 301.5 Mbps

WireGuard VPN

• Throughput: 393.5 Mbps

Sessions

• Concurrent sessions: 150,000
• New sessions per second: 5,100

NAT Throughput

• NAT (Static IP): 937.2 Mbps / 936.1 Mbps
• NAT (DHCP): 945.8 Mbps / 940.6 Mbps
• NAT (PPPoE): 942.9 Mbps / 942.9 Mbps
• NAT (L2TP): 837.4 Mbps / 881.5 Mbps
• NAT (PPTP): 803.0 Mbps / 910.5 Mbps

IPSec VPN Throughput

• ESP‑SHA1‑AES256: 646.9 Mbps
• ESP‑SHA256‑AES256: 642.8 Mbps
• ESP‑SHA384‑AES256: 648.9 Mbps
• ESP‑SHA512‑AES256: 658.4 Mbps

Other VPN Throughput

• OpenVPN: 129.3 Mbps
• L2TP VPN:
• Unencrypted: 1034.0 Mbps
• Encrypted: 570.0 Mbps
• PPTP VPN:
• Unencrypted: 1165.0 Mbps
• Encrypted: 209.0 Mbps
• SSL VPN: 126.7 Mbps

Packet Forwarding Rate

• 66‑byte packets: 1,453,489 pps / 1,453,488 pps
• 1518‑byte packets: 81,274 pps / 91,275 pps

Network & Wireless Functions

Basic WAN Functions

• WAN connection types: Static IP, Dynamic IP, PPPoE (supports MRU configuration), PPTP, L2TP
• MAC clone
• Modify WAN address

DHCP

• DHCP server
• DHCPv6 PD server (only in Standalone Mode)
• DHCP options customization
• DHCP address reservation

Multi-IP & IPv6

• Multi‑IP interfaces
• Multi‑Net DHCP
• IPv6: Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / PassThrough / Non‑Address mode

VLAN & IPTV

• 802.1Q VLAN
• IPTV: IGMP v2/v3 proxy, Custom Mode, Bridge Mode

Advanced Functions

Routing & Bandwidth

• Advanced routing: Static routing, Policy routing, RIP5, OSPF5
• IP-based bandwidth control

Load Balancing

• Intelligent load balance
• Application optimized routing
• Link backup (Timing, Failover)
• Online detection

NAT Features

• One‑to‑one NAT
• Multi‑Net NAT
• Virtual server
• Port triggering*5
• NAT‑DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP

Session Management

• Session limit
• IP-based session limit

VPN Features

SSL VPN

• Up to 50 tunnels

IPSec VPN

• Up to 100 IPSec VPN tunnels
• LAN‑to‑LAN, Client‑to‑LAN
• Main, Aggressive negotiation mode
• DES, 3DES, AES128, AES192, AES256 encryption algorithms
• IPSec failover
• IKE v1/v2
• MD5, SHA1, SHA2‑384, SHA2‑512 authentication algorithms
• NAT traversal (NAT‑T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)

PPTP VPN

• PPTP VPN server
• PPTP VPN client (10)*6
• Up to 50 tunnels
• PPTP with MPPE encryption

L2TP VPN

• L2TP VPN server
• L2TP VPN client (10)*6
• Up to 50 tunnels
• L2TP over IPSec

OpenVPN

• OpenVPN server
• OpenVPN client (5)*6
• Up to 55 OpenVPN tunnels
• “Certificate + Account” mode
• Full mode

WireGuard VPN

• Up to 20 tunnels

Authentication & Hotspot

• Web authentication
• No authentication
• Simple password*6
• Hotspot (Local User / Voucher6 / SMS6 / Radius*6)
• External Radius server
• External portal server*6
• LDAP

Management & Cloud

Management Options

• Omada App
• Omada Cloud‑Based Controller
• Omada Hardware Controller
• Omada Software Controller

Cloud Access

• Cloud access (requires Omada Cloud‑Based Controller)

Services

• Dynamic DNS: Dyndns, No‑IP, Peanuthull, Comexe, DDNS customization

Maintenance & Monitoring

• Web management interface
• Remote management
• Export & import configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)*5
• NTP synchronize*5
• Port mirroring
• CLI (only in Standalone Mode)
• Syslog support
• TR‑069 (data models of TR‑098 and TR181 supported)
• Zero‑Touch Provisioning (requires Omada Cloud‑Based Controller)

Management Features

• Automatic device discovery
• Intelligent network monitoring
• Abnormal event warnings
• Unified configuration
• Reboot schedule
• Captive portal configuration

Certifications

• CE
• RoHS

Package Contents

• DR3650v
• Power adapter
• Ethernet cable
• Phone cable
• Quick Installation Guide

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/8.1/10/11
• MAC OS, NetWare, UNIX, or Linux

Environment

• Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating humidity: 10% to 90% non‑condensing
• Storage humidity: 5% to 90% non‑condensing
