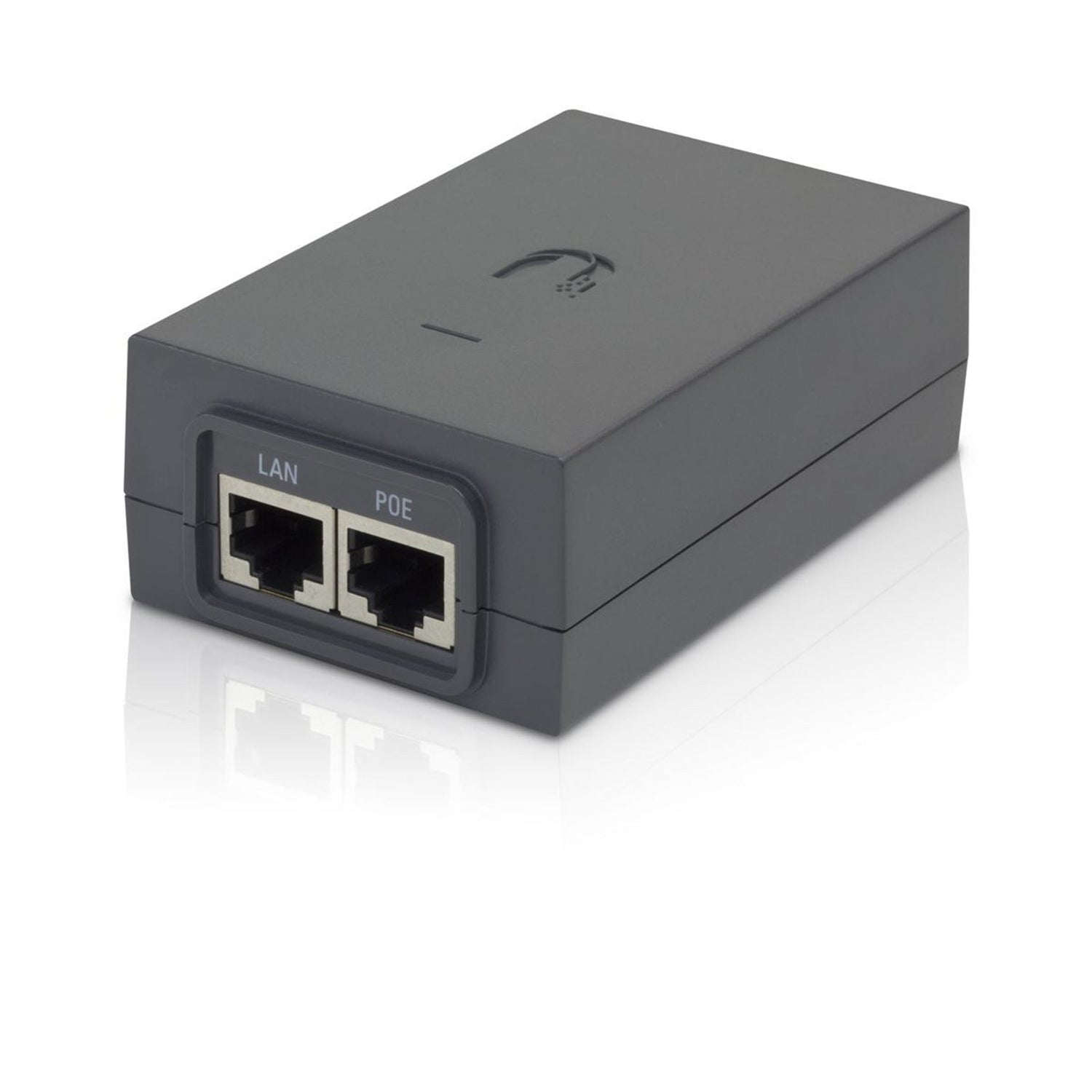

Ubiquiti POE-48-24W-G PoE Gigabit Injector
$35.00
Ubiquiti Networks PoE Adapter
Ubiquiti Networks Power over Ethernet (PoE) Adapters provide centralized power for a variety of Ubiquiti devices. They are compatible with most Ubiquiti PoE products*, including:
- airFiber
- airMAX
- EdgeMAX
- mFi
- UniFi AP
- UniFi Video / airVision
*Always check individual product specifications to verify PoE compatibility.
airGateway Compatibility
Specific Ubiquiti PoE Adapter models are designed for use with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built‑in Wi‑Fi used to connect the subscriber’s local network to the WISP network.
airGateway Models
- airGateway – Standard model with an internal antenna
- airGateway Pro – Dual‑Band Wi‑Fi model with an internal antenna
- airGateway‑LR – Long‑range Wi‑Fi model with an external antenna for extended range
Technical Specifications
| Specification | Detail |
|---|---|
| Dimensions (W x H x D) | 96 x 62 x 35 mm |
| Output Voltage | 48VDC @ 0.5A |
| LAN Activity Indicator | No |
| Gigabit LAN Port | Yes |
| Remote Reset Capability | No |
| Reset Button | No |
| Input Voltage | 90–260VAC @ 47–63 Hz |
| Input Current | 0.6A @ 120VAC, 0.4A @ 240VAC |
| Inrush Current | <65A Peak @ 120VAC, <130A Peak @ 230VAC |
| Efficiency | 80+% |
| Output Ripple | 1% Max. |
| Switching Frequency | 65 kHz |
| Line Regulation | ± 1% |
| Load Regulation | ± 3% |
| 2-Pair Powering | Pins 4, 5 (+) and Pins 7, 8 (–) |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Storage Temperature | -30 to 70° C (-22 to 158° F) |
| Operating Humidity | 35 to 95% Noncondensing |
| AC Connector | IEC-320 C6 |
| Data IN / POE | RJ45 Shielded Socket |
Surge Protection
| Surge Protection Feature | Detail |
|---|---|
| Protection Type | Difference and Common Mode |
| Clamping Protection | 11V Data, 60V Power |
| Max. Surge Discharge | 1500A (8/20) Power |
| Peak Pulse Current | 36A (10/1000) Data |
| Shunt Capacitance | <5 pF Data |
| Response Time | <1 ns |
Compliance
- IEC 60950-1:2005 + A1
- UL60950-1
- EN55022:2010
- EN55024:2010
- FCC Class B
